Description

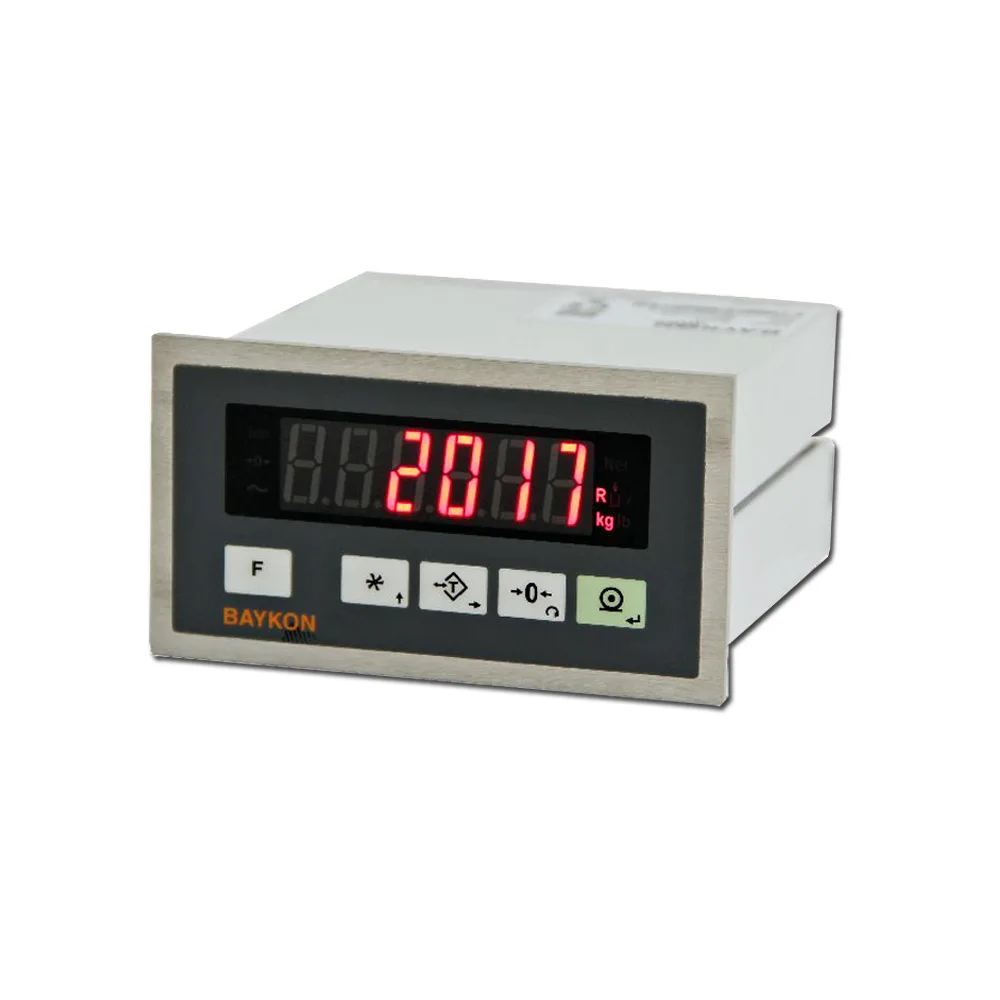

The Baykon BX14 is a smart, high-performance weighing controller, purpose-built for discontinuous totalising and extraction rate applications in industrial environments. Designed to control and monitor material flow along production lines, it offers real-time totalising, daily usage tracking, and estimates for upcoming usage. The BX14 also includes three configurable accumulators for various tracking needs, including batch totals, turn totals, and an indelible permanent total.
For versatile integration, the BX14 supports multiple fieldbus options, making it ideal for PLC connections and complex automation setups. Equipped with advanced digital filtering, the controller ensures stable, precise readings, while the 7 digital outputs (5 relay contacts and 2 non-isolated) and 4 programmable inputs facilitate easy valve and system control. Convenient calibration options, such as eCal, allow for efficient, weight-free calibration, making it particularly suitable for large hopper setups where emptying isn’t practical.
The BX14’s compact aluminium body and stainless steel front are ideal for panel-mounted installations in rugged environments, with a 13.5mm LED display ensuring readability even at a distance.
Technical Specification
| Choose your connection | Default Connection, Ethernet, Modbus TCP and Webserver PC access, CANopen, Profibus, Profinet, Ethernet IP, EtherCAT, CCLink, Powerlink |
|---|---|
| Accuracy Class | OIML Class III |
| Device Type | Process Controller |
| EU Type Approval | 10, 000 divison |
| Housing Type | Panel Mount |
| Linearity | % 0.0015 FS |
| Use | Filling |
| Temperature Coefficient | ?2 ppm/°c |
| IP Rating | IP67 |
| Mobility | Static |
| Display | 6 digits, 7 segments, LED red, 13.5mm high |
| Environment | Dry, Outdoors |
| Status Annunciators | Gross, net, centre of zero, 1 / hour flow rate, estimated next 24 hour total, total, unit (kg, ~ lb) |
| Connectivity | Analogue, CANopen, CC Link, Digital I/Os, EtherCAT, Ethernet IP, Ethernet TCP/IP, MODBUS RTU, MODBUS TCP, PowerLink, Profibus, Profinet, RS232, RS485 |
| Keyboard | 5 key (function, star key tare/clear, zero, print) with tactile feedback |
| Power Source | DC |
| Key Lock | Keys can be locked against unathorised access |
| Industry | Aggregates & Cement, Agriculture, Automotive & Aerospace, Chemical, Food & Drink, Manufacturing, Meat Processing, OEM, Pharmaceuticals |
| Type | 24 bit Delta-Sigma ratiometric with internal analogue and digital filters |
| Conversion Rate | up to 1600 measurement values per second |
| Min. input sensitivity | 0.4 uVd (Approved): 0.1 uV/d (non Approved) |
| Analogue input range | -18mV To +18 Mv |
| Resolution | Internal up to 16, 000, 000: up to 10, 000 increment (Approved); up to 999, 999 increment (Non approved) |
| Calibration | Calibration is performed with or without test weights (eCal) |
| Digital filter | 10 steps programmable adaptive filter |
| Weighing functions | Taring, zeroing, auto zero taring, motion detection, increased resolution |
| Process functions | Row rate control, totalising control, emptying pipe control, by-pass functions Accumulations; daily total. estimated next 24h total, batch total, turn total, Non-erasable total |
| Digital outputs | 5 relay contact 250VAC or 30 VDC, 1A |
| Digital Inputs | 4 opto-isolated digital inputs 12-28 VDC, 10mA |
| RS-232C | 1200 to 115200 baud, 8 none 1, 7 even 1, 7 odd 1, 8 even 1 or 8 odd 1 Continuous, BSI (Baykon Serial Interface) protocol and printer forms |
| RS-485 | 1200 to 115200 baud, 8 none 1, 7 even 1, 7 odd 1, 8 even 1 or 8 odd 1, 31 units on the bus |
| Modbus RTU | 1200 TO 115200 Baud, 8 none 1, 8 even 1 or 8 odd 1, up to 31 units on the RS-485 bus |
| Ethernet TCP/IP or Modbus TCP | 10 Mbit/s (half duplex), galvanically isolated |
| Ethernet/IP | 10 Mbit/s or 100 Mbit/s full dublex, galvanically isolated |
| EtherCAT | 100 Mbits, Full dublex, Galvanically isolated |
| Profibus | Profibus DPV1. 9.6 KBIT/S TO 12 Mbit/s automatic baud rate detection |
Literature, Manuals and Documents
Document Name
Action
BX14 Process Controller Technical Specification
Videos
Baykon BX14 Process Controller
Perfect for totalising and extraction rate control, the Baykon BX14 is a smart weighing controller designed for discontinuous totalising applications. It offers real-time flow control, multi-purpose accumulators, and durable construction, making it ideal for demanding industrial environments.
Price From£820.00
