Description
The BX23 weight indicator delivers high accuracy, exceptional durability, and a vast range of connectivity options at a competitive price. Engineered with an IP67 stainless steel enclosure, it performs reliably in wet, hygienic, and harsh environments, making it ideal for industrial applications requiring robust performance. With OIML approval for single and multi-range applications, the BX23 supports demanding weighing needs with precision and compliance.
Packed with features tailored for scale engineers, the BX23 provides easy-to-use menu-driven setup and diagnostic tools for quick troubleshooting and maintenance. Key features include eCAL electronic calibration, which allows calibration without test weights, ideal for high-capacity applications like tank or silo weighing. The display offers colour selection, and operators can track weight through a clear bar graph display. Ethernet and Modbus RTU/TCP come as standard, providing smooth data integration with existing systems.
Multiple connectivity options—including RS232, RS485, USB, and advanced industrial fieldbus protocols such as Profibus, Profinet, and CANopen—ensure seamless communication with PLCs and systems.
Technical Specification

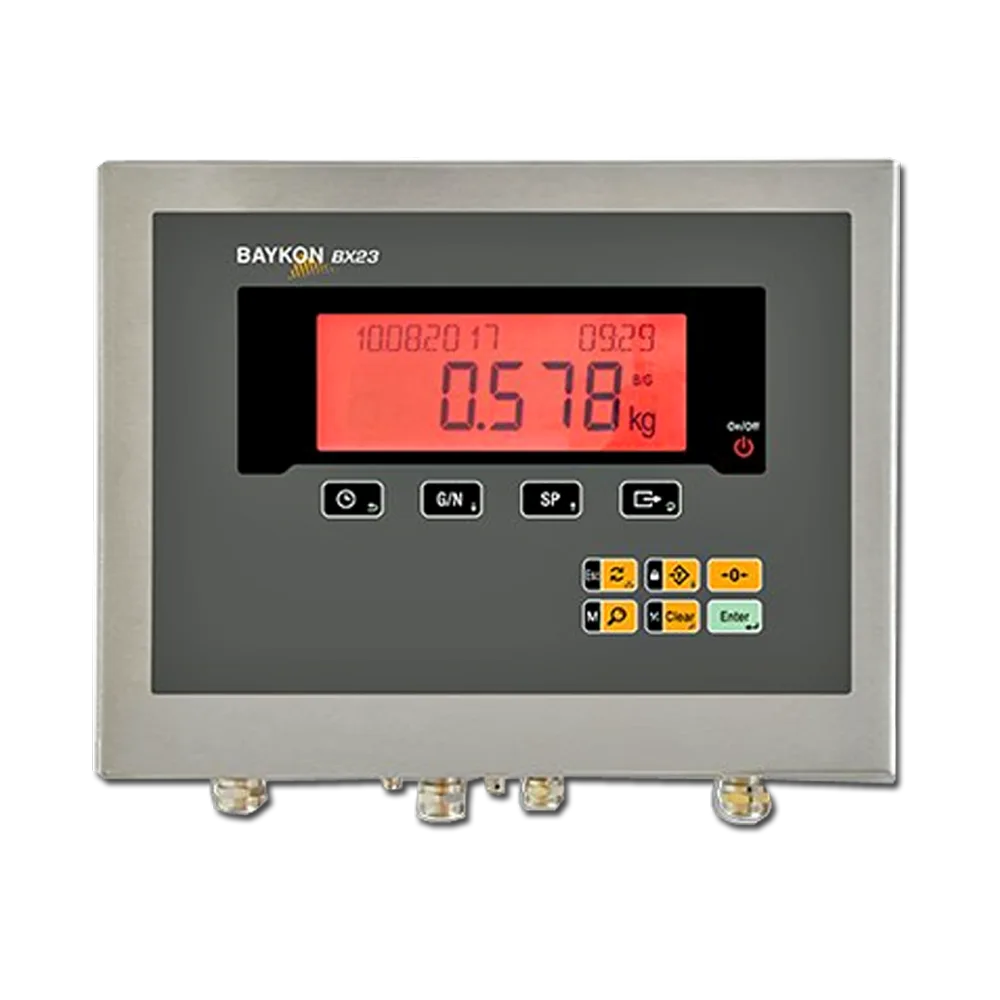

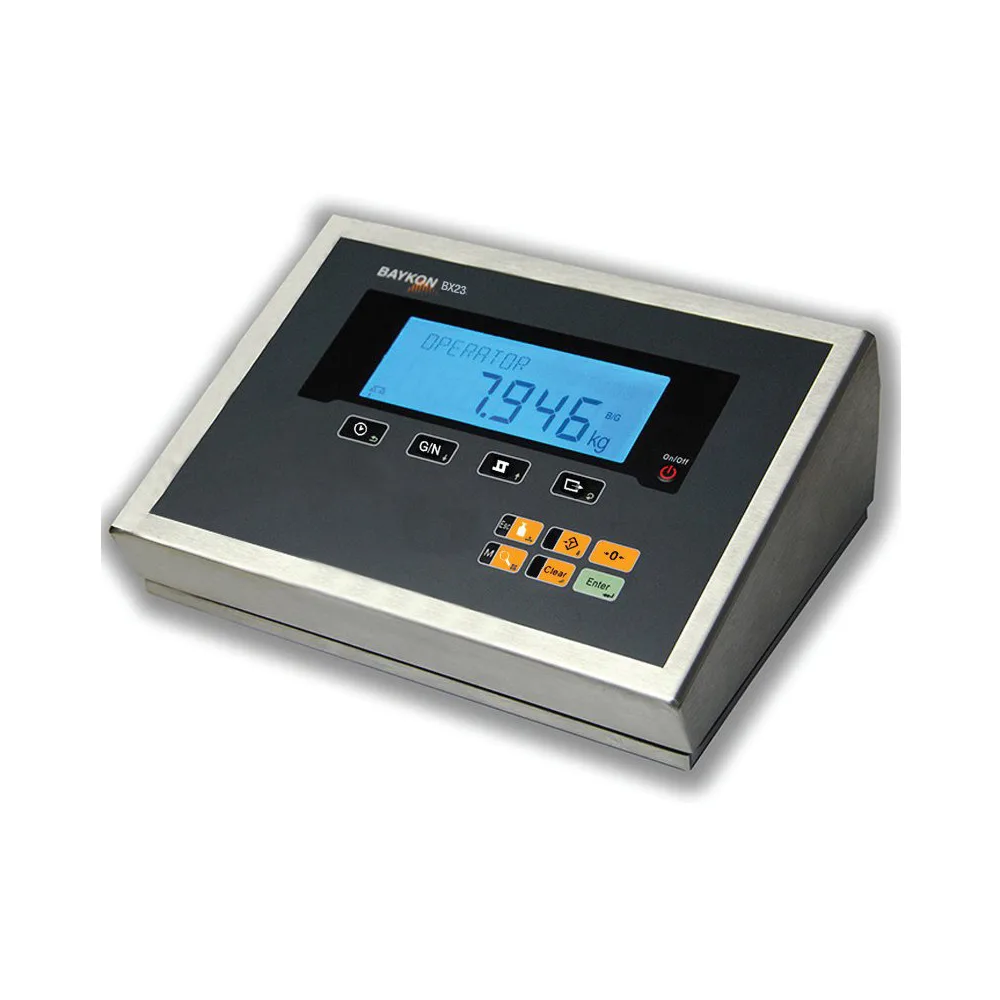

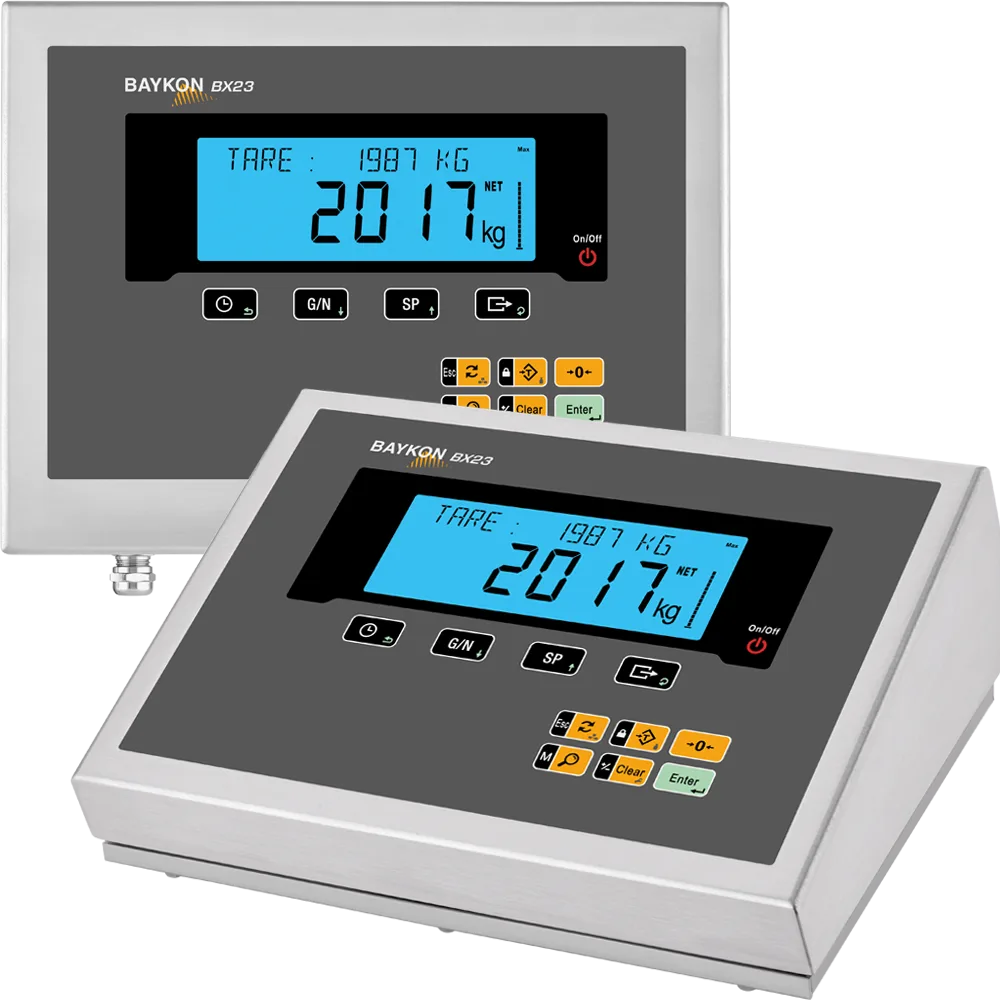

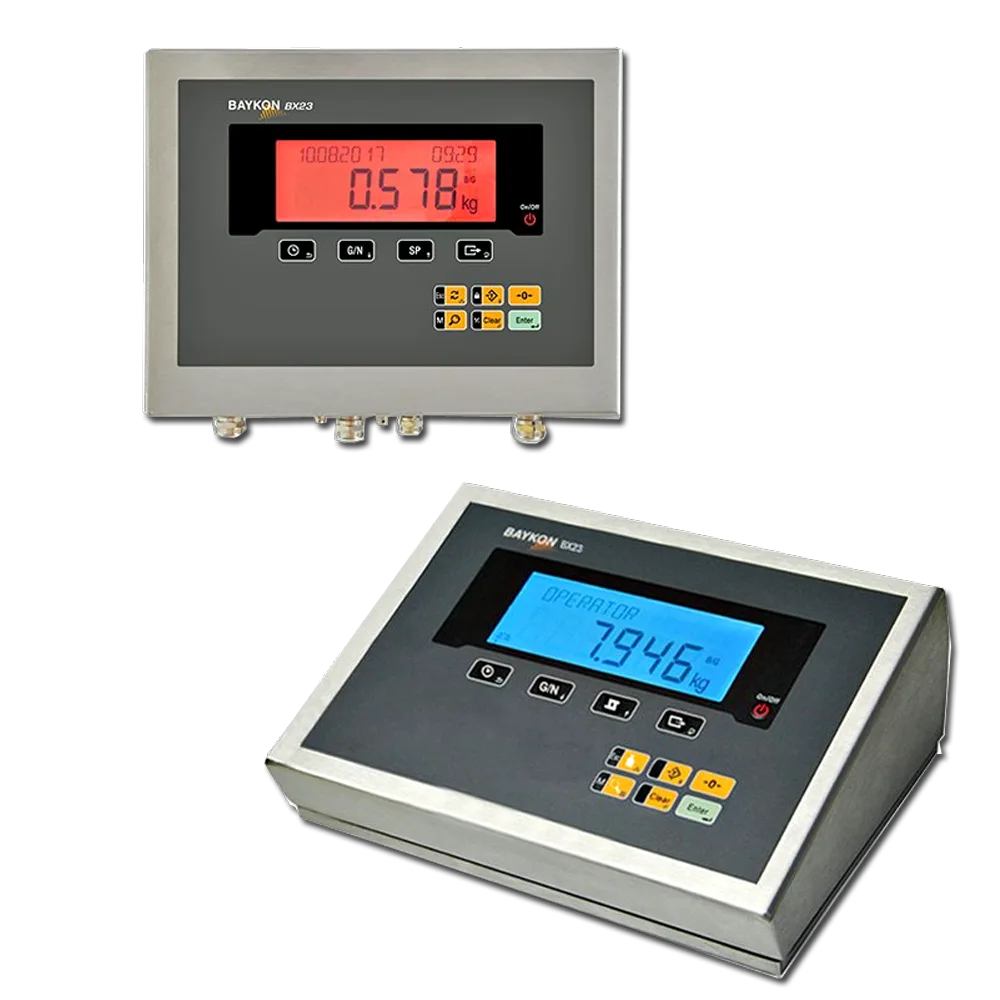

| Select mount option | Desk Mounted, Wall Mounted |
|---|---|
| Choose your connection | Default Connection, Digital I/O – 4 inputs/5 outputs, Analogue Output inc. BX2X-DIO, Industrial Ethernet IP inc. BX2X-DIO, Profibus inc. BX2X-DIO, Profinet S2 in BX2X-DIO, EtherCAT inc. BX2X-DIO, CCLink inc. BX2X-DIO, CANopen inc. BX2X-DIO, Powerlink inc. BX2X-DIO |
| Device Type | Weight Indicator |
| Accuracy class & EU type approval | OIML Class III, single range, multi range or multi interval |
| Housing Type | Enclosed |
| Display | Wide angle LCD display with multicolour backlight, 6 digits 22mm in heigh weigh display and 16 digits 8mm in height alphanumeric information display |
| IP Rating | IP67 |
| Display Resolution | Up to 999 999 division |
| Material | Stainless Steel |
| A/D conversion | 24 bit Delta- Sigma ADC with up to 800 conversion rate |
| Mobility | Static |
| Minimum Input Sensitivity | 0.4?V/d (legal metrology), 0.05?V/d (industrial) |
| Environment | Outdoors, Wet/Hygiene |
| Analogue Input Range | -5mV to +19mV |
| Connectivity | Analogue, CANopen, CC Link, Digital I/Os, EtherCAT, Ethernet IP, Ethernet TCP/IP, MODBUS RTU, MODBUS TCP, PowerLink, Profibus, Profinet, RS232, RS485 |
| Internal Resolution | Up to 16, 000, 000 counts |
| Power Source | DC, Mains AC |
| Calibration | Standard calibration tests with test weights eCAL: electronic calibration without test weight, span adjustment of non-empty tanks |
| Industry | Agriculture, Automotive & Aerospace, Chemical, Food & Drink, Manufacturing, Meat Processing, OEM, Pharmaceuticals, Recycling & Waste Reporting, Warehousing & Logistics |
| Digital Filter | 5 step adjustable digital adaptive filter |
| Functions | Ticket number date and time, unit change |
| Standard Applications | Labelling basic weighing, livestock weighing, interface with PC or PLC over Fieldbus, Ethernet etc |
| Memory | 500 item limit values. Each item has 5 pcs free programmable set points in the memory |
| Digital Inputs | Opto isolated 4 inputs programmable for zeroing, taring, print, fieldbus controlled input, etc |
| Digital Outputs | Relay contact outputs can be programmable independently to 9 different functions |
| Data Output | Opto isolated 2 pcs RS232C and RS485 (with Modbus RTU) and USB |
| Number of loadcells | Up to 8 loadcells 350 ohm or 27 loadcells 1200 ohm |
| Loadcell Connection | Connection with 4 or 6 wires. Cable length maximum 1000m/mm2 |
| Alibi Memory | 1,000,000 weighing records |
| Operation Temperature | -15°~ +55°C Legal metrology -10°C ~ +40°C |
| Humidity | Maximum 90% non-condensing relative humidity legal metrology maximum 80% |
| Housing & Protection Class | Desktop and wall type stainless steel, IP67 protected |
| Scales Options | Alibi memory |
| Interfaces | Digital 4 inputs/5 outputs, Analogue Output, Profibus, Profinet, CANopen, Modbus RTU/TCP, Ethernet TCP/IP, EtherNet/IP, EtherCAT, CC-Link, Powerlink |
| Accessories | Column mount kit, wall mount kit, 2D wall mount kit |
Literature, Manuals and Documents
Videos
Baykon BX23 Indicator
The Baykon BX23 is a high-precision, OIML-approved weight indicator designed for challenging environments. With Ethernet and Modbus RTU/TCP, IP67 stainless steel protection, and a host of diagnostic features, it offers powerful control and connectivity for diverse weighing applications.
Price From£720.00
