Description

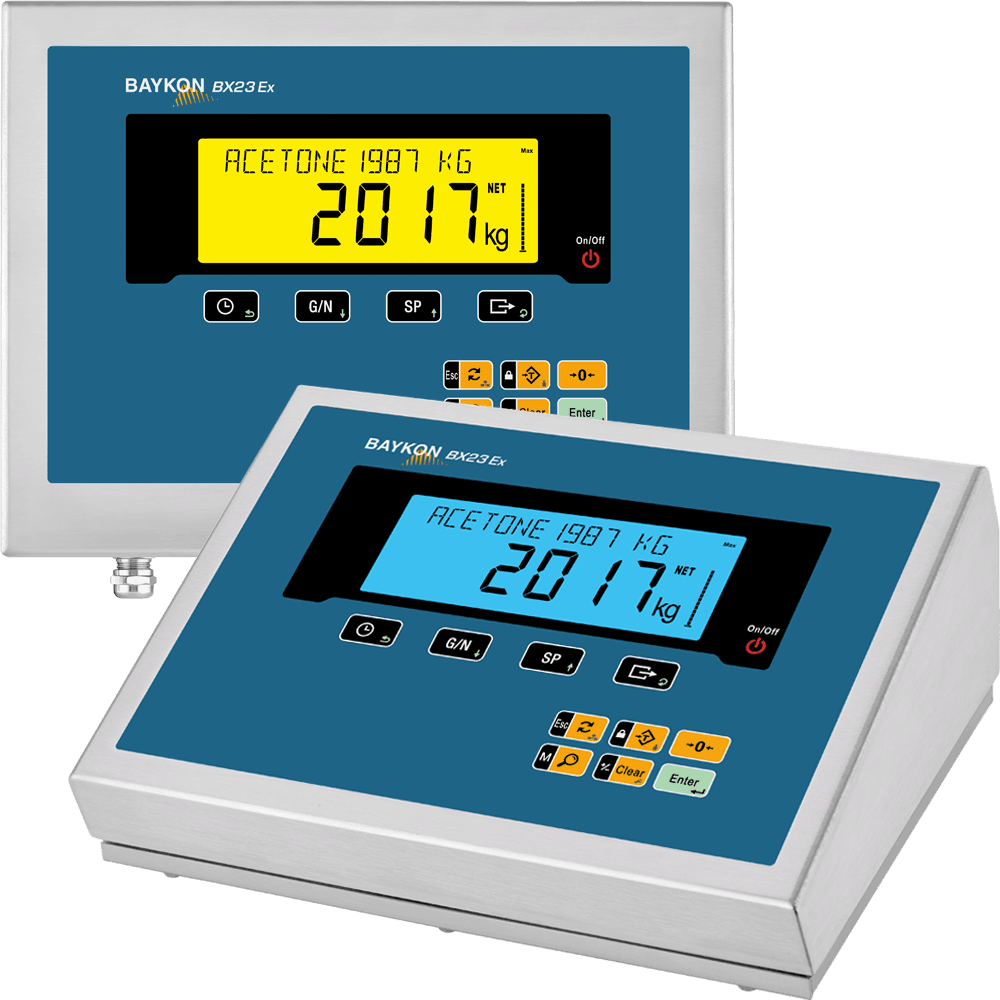

The Baykon BX23-EX is a high-accuracy, ATEX-approved weighing controller designed for hazardous environments, specifically Zones 2/22. With its IP67 stainless steel housing, it is ideal for use in wet, hygienic, and challenging conditions, ensuring reliable and accurate performance. It is equipped with Ethernet, Modbus TCP and RTU as standard, and offers a range of advanced calibration and diagnostic features, including eCAL electronic calibration—particularly valuable for heavy-capacity scales like tanks and silos.
The BX23-EX also provides powerful connectivity options, including isolated fieldbus, RS232, RS485, USB ports, and various industrial protocols such as Profibus and Profinet. Its menu-driven setup and live diagnostic features make it easy to configure and maintain, while its high-resolution mode and robust connectivity support a wide range of applications. The BX23-EX is a reliable, cost-effective solution for professionals needing a flexible and durable weighing controller.
Technical Specification
| Select Mount Option | Desk Mounted, Wall Mounted with Bracket |
|---|---|
| Power Supply | 120-240AC, 12-24VDC |
| Device Type | Weight Indicator |
| Choose your connection | Default Connection, Ex-Isolated Digital I/O – 4 inputs/5 outputs, Ex-Isolated Analogue Output inc., Ex-Isolated Industrial Ethernet IP inc., Ex-Isolated Profibus inc. BX2X-DIO, Ex-Isolated Profinet inc. BX2X-DIO, Ex-Isolated EtherCAT inc. BX2X-DIO, Ex-Isolated CCLink inc. BX2X-DIO, Ex-Isolated Powerlink inc. BX2X-DIO, Ex-Isolated Digital I/O – 4 inputs/5 outputs, Ex-Isolated Analogue Output inc., Ex-Isolated Industrial Ethernet IP inc., Ex-Isolated Profibus inc. BX2X-DIO, Ex-Isolated Profinet inc. BX2X-DIO, Ex-Isolated EtherCAT inc. BX2X-DIO, Ex-Isolated CCLink inc. BX2X-DIO, Ex-Isolated Powerlink inc. BX2X-DIO |
| IP Rating | IP67 |
| Accuracy class & EU type approval | OIML class III, single range, up to three range multi range or multi interval |
| Mobility | Static |
| Display | Wide angle LCD display with multicolour backlight, 6 digits 22mm in height weight display and 16 digits 8mm in height alphanumeric information display |
| Environment | Hazardous, Outdoors, Wet/Hygiene |
| Display resolution | Up to 999, 999 divison |
| Connectivity | Analogue, CANopen, CC Link, Digital I/Os, EtherCAT, Ethernet IP, Ethernet TCP/IP, MODBUS RTU, MODBUS TCP, PowerLink, Profibus, Profinet, Profinet S2, RS232, RS485 |
| A/D conversion | 24 bit Delta -sigma ADC with up to 1600 conversion rate |
| Power Source | DC, Mains AC |
| Minimum input sensitvity | 0.4 uV/d (legal metrology), 0005 uV/d (Industrial) |
| Industry | Agriculture, Automotive & Aerospace, Chemical, Food & Drink, Manufacturing, OEM, Pharmaceuticals |
| Analogue input range | -5mV to +19mV |
| Internal resolution | up to 16, 000, 000 counts |
| Calibration technics | Standard claibration test with test weights, multipoint calibration eCAL: Electronic calibration with out test weight, Span adjustment of non-empty tanks |
| Digital Filter | 5 Step adjustable digital adaptive filter |
| Functions | Ticket Number, date & time, unit change |
| Standard applications | Baisc Industrial weighing tank/silo weighing, control at weighing, dynamic weighing, weighing in process, interface with PC or PLC over fieldbus, ethernet etc. |
| Memory | 500 item limit values, Each item has 5 pcs free programmable set points in the memory. |
| Digital Inputs | Opto isolated 4 inputs programmable for zeroing, taring, print fieldbus controlled input, etc |
| Digital Outputs | Opto isolated outputs can be programmable indpendently to 9 different functions. |
| Data Output | Galvanically isolated, 2 pcs RS232C and RS485 (with modbus RTU), ETHERNET tcp/ip (with modbus TCP) AND usb |
| Number of Load Cells | Up to 8 Load cells 350 ? or up to 24 load cells 1200 ? (min 43 ?) |
| Loadcell Connection | Connection with 4 or 6 wires. Cable length maximum 1000m/ mm2 |
| Alibi Memory | 99, 999 weighing records |
| Hazardous Area | ATEX Approval 11 3g eX IC EC {IC} IIC T6 (Gases) ii 3D Ex ic tc [ic} iiiC T85 IP67 (Dust) IECEx Approval Gases Ex ic ec [ic] iic T6 Gc Dust Ex ic tc[ic] iic T85 Dc IP67 |
| Operation Temperature | -15°C~+50°C Max. (Operational), -10°C~ +40°C (LEGAL METROLOGY AND hAZARDOUS AREA) |
| Humidity | Max. 90% NON CONDENSING RELATIVE HUMIDTY. lEGAL METROLOGY MAX. 80% |
| Housing and protection class | Desktop and wall type stainless steel, IP67 protected |
| Power source | 100-240 VAC, 50/60Hz or 12-28 VDC for power supply in EX area or for external Battery |
| Scales options | Alibi memory |
| Interfaces | ATEX and IECEx certified interfaces are; Analogue Ouput, Profibus, Profinet, Ethernet IP Digital 4 Inputs/ 5 outputs Modbus RTU powerlink EtherCAT |
| Accessories | Ex Battery pack, EXload cell cable, Data cable, Ex junction box, Column mount kit, Wall Mount kit, 2D wall mount kit. |
Literature, Manuals and Documents
Document Name
Action
BX23_EX_EN
Videos
Baykon BX23-EX ATEX Indicator
The Baykon BX23-EX is an ATEX-approved weighing controller designed for use in Zones 2/22, offering high accuracy and exceptional connectivity options. With an IP67 watrer rated stainless steel housing, it is suitable for harsh environments, including wet and hygienic conditions.
Price From£955.00
