Description

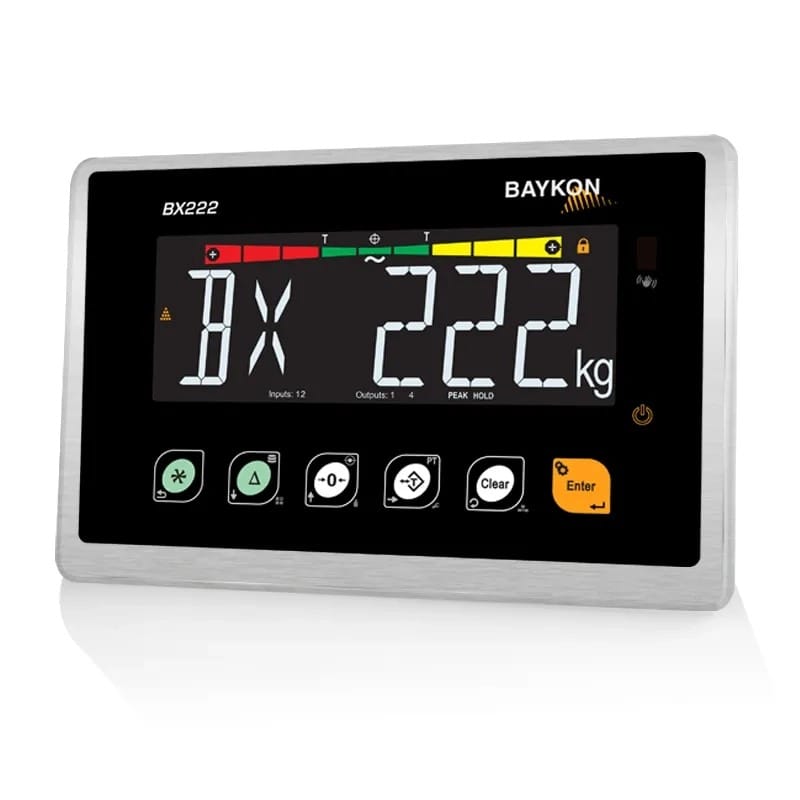

The Baykon BX222 Industrial Weighing Indicator is designed for reliable, high-performance weighing in demanding industrial environments. Compatible with both analogue and digital load cells, it provides fast processing speeds, weighing stability and an IP68-rated stainless steel enclosure, making it suitable for wet, hygienic and harsh operating conditions.
Ideal for manufacturing, food production, logistics and agricultural applications, the BX222 supports a wide range of weighing tasks including basic weighing, product weight control, packaging, portioning, live animal weighing, tank and silo weighing.
With support for industrial communication protocols including Ethernet TCP/IP, Modbus, Profinet, EtherNet/IP, EtherCAT, Profibus, CANopen and more, it integrates easily into PLCs, SCADA systems and factory automation networks.
Features such as touch-free operation, programmable function keys, product memory and high-speed processing help improve efficiency while maintaining exceptional weighing accuracy.
Technical Specification
| Applications | Basic weighing, over/under checkweighing, packaging, portioning (including touch-free zeroing), dynamic weighing, live animal weighing and mobile weighing applications. |
|---|---|
| Approval: | OIML Class III, single-range, multi-range or multi-interval. |
| Minimum Input Sensitivity: | 0.4 μV/d (trade approved), 0.05 μV/d (industrial). |
| Analogue Input Range: | ±75 mV (bipolar). |
| Internal Resolution: | Up to 1, 000, 000, 000 counts. |
| Digital Filter: | 8-step adaptive digital filter. |
| Display: | Wide-angle, high-brightness 6-digit alphanumeric display with 36 mm character height. |
| Display Resolution: | 10, 000 divisions (trade approved to OIML R76); up to 999, 999 divisions for industrial applications. |
| A/D Converter: | 30-bit Delta-Sigma ADC with up to 1, 600 conversions per second. |
| Application Memory: | 100 numeric tare memories and 100 product memories for checkweighing, portioning and packaging. |
| Programmable Buttons: | Three programmable function keys and one touch-free infrared key. |
| Load Cell Capacity: | Up to 8 × 350 Ω load cells or 24 × 1200 Ω load cells (minimum 43 Ω). |
| Load Cell Connection: | 4- or 6-wire connection with a maximum home-run cable length of 4, 000 m/mm². |
| Load Cell Excitation: | 5 VDC, max. 125 mA. |
| Operating Temperature: | -10°C to +40°C (trade approved) or -15°C to +55°C (industrial). |
| Humidity: | Up to 80% RH (trade approved) or 90% RH (industrial), non-condensing. |
| Enclosure: | Stainless steel. |
| Protection Rating: | IP68. |
| Standard Communications: | RS232, RS485 and USB Type-C. |
| Power Supply: | 100–240 VAC, 50–60 Hz or 12–28 VDC. |
| Mounting Options: | Suitable for table, wall or column mounting using optional brackets. |
| Alibi Memory: | 99, 999 records. |
| Industrial Communications: | Modbus RTU, Modbus TCP, Ethernet TCP/IP, Profinet, EtherNet/IP, EtherCAT, Powerlink, Profibus, CANopen, CC-Link and CC-Link IE Field. |
| Digital Inputs: | 3 optically isolated inputs (12–28 VDC, 10 mA), programmable for functions such as zero, tare, print, Fieldbus remote input and tilt sensor input. |
| Digital Outputs: | 4 programmable transistor outputs for setpoints, Fieldbus remote output and other control functions. |
| Analogue Output: | 0–5 VDC, 0–10 VDC, ±5 VDC, ±10 VDC, 0–20 mA or 4–20 mA. |
| Internal Battery Options: | 3.5 Ah (approximately 10 hours operation) or 7 Ah (approximately 20 hours operation), with a typical recharge time of 5 hours. |
Literature, Manuals and Documents
Document Name
Action
BX223 Product Sheet
Videos
Baykon BX222
Designed for demanding industrial applications, the Baykon BX222 Industrial Weighing Indicator delivers fast, accurate weighing, supporting both analogue and digital load cells. The BX222 combines IP68 stainless steel protection, extensive communication options and flexible configuration for weighing, checkweighing, packaging, livestock, tank and silo applications.
Price From£375.00
