Description

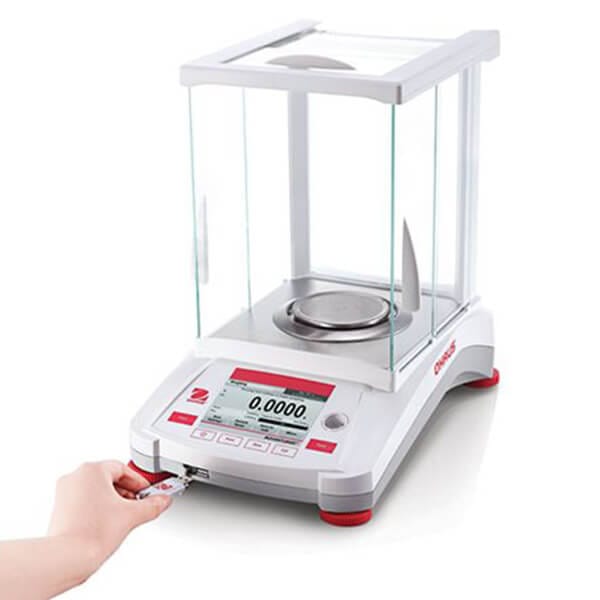

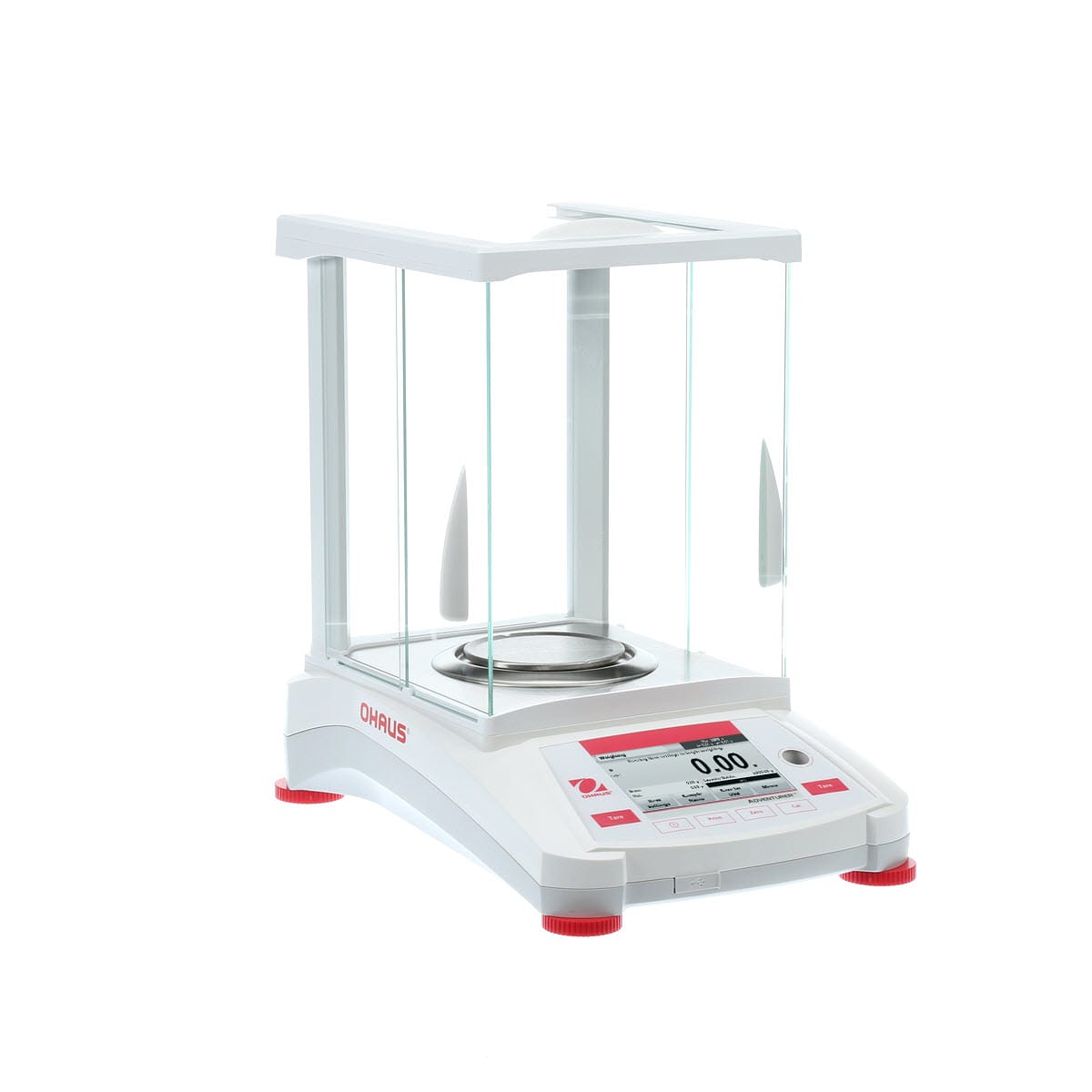

The OHAUS Adventurer Analytical Balance is designed for precise and reliable weighing in a variety of laboratory applications. Featuring a 4.3″ full-colour touchscreen, it provides easy navigation through its range of functions, including weighing, parts counting, density determination, and check weighing. With dual USB ports for seamless data transfer and a glass draftshield with top-mounted side doors, the balance ensures convenience and accessibility while maintaining accuracy. Its robust construction includes a metal base, ABS top housing, and stainless steel pan, making it durable and easy to maintain.
The balance is equipped with AutoCal™ automatic internal calibration to ensure consistent accuracy, while its applications support GLP/GMP data output with a real-time clock, ideal for compliance and record-keeping. Additional features include selectable environmental filters, auto tare, and user-definable project and user IDs, offering full flexibility. With the ability to support multiple languages and a range of data print options, the Adventurer Analytical Balance is suitable for laboratories, educational settings, and industrial environments.
Technical Specification
| Capacity | 120g, 220g, 320g |
|---|---|
| Readability | 0.1mg |
| EC Type Approved | Yes, No |
| Approved Models | AX124M, AX224M, AX324M |
| Capacity (g) | 120, 220, 320 |
| Readability d (g) | 0.0001 |
| Verification Interval (g) | 0.001 |
| Class | II |
| Repeatability (sd.) ≤5% of Full Load (g) | 0.0001 |
| Repeatability (sd.) 5% of Full Load to Fine Range Max (g) | — |
| Repeatability (sd.) 5% of Full Load to Full Range (g) | 0.0001 |
| Linearity Deviation, Typical (g) | ±0.00006 |
| Linearity Deviation (g) | ±0.0001 |
| Stabilization Time (sec) | ≤2 |
| Sensitivity Drift (ppm/°C) | 3 |
| Min-Weight (Typical) (g) | 1.6 |
| Min-Weight (Optimal) (g) | 0.82 |
| Weighing Units | mg, g, ct |
| Weighing Applications | Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Formulation, Density Determination, Totalization, Display Hold, Batch Printing |
| Pan Size | Ø 130 mm |
| Calibration | All models feature external calibration. Models feature AutoCal™ internal calibration, except for AX…/E models |
| Tare Range | To capacity by subtraction |
| Power Requirements | AC Adapter Input: 100-240 VAC 0.3A 50-60 Hz, AC Adapter Output: 12 VDC 0.84A |
| Display Type | Full-Color Touchscreen WQVGA Graphic LCD |
| Display Size | 109 mm (diagonal) |
| Base Housing (W × H × D) | 354 × 340 × 230 mm |
| Communication | RS232, USB Device, USB Host |
| Temperature Range | 10°C to 30°C |
| Humidity Range | Maximum relative humidity 80% for temperatures up to 30°C |
| Storage Conditions | -10°C to 60°C at 10% to 90% relative humidity, non-condensing |
| Shipping Dimensions | 507 × 387 × 531 mm |
| Net Weight | 5.8 kg |
Literature, Manuals and Documents
Document Name
Action
Videos
Ohaus Adventurer™ Analytical Balance
Suitable for routine laboratory tasks, the OHAUS Adventurer Analytical Balance combines user-friendly features with precise weighing capabilities. It offers a 4.3″ color touchscreen, multiple connectivity options including dual USB ports, and AutoCal™ automatic internal calibration.
Price From£2,485.00
