Description

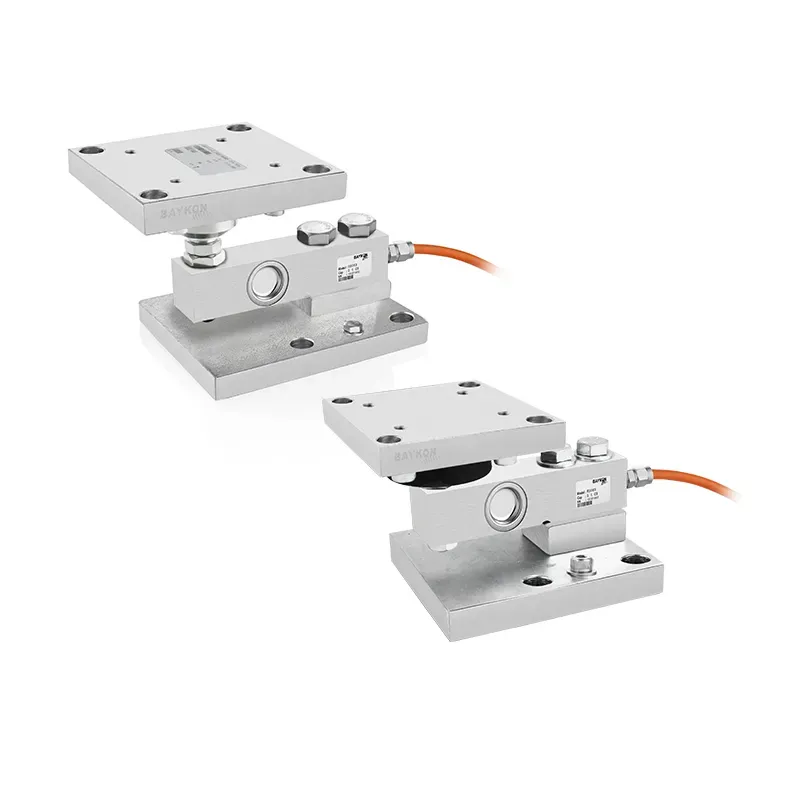

The Baykon Ball & Rubber Foot Weighing Modules are rugged, cost-effective solutions for converting tanks, silos, hoppers, and platform structures into accurate weighing systems. With capacities up to 5t and integrated anti-lift protection, they ensure measurement integrity and safety in demanding industrial environments.
Available in two base formats, Ball Foot (LEB/FT) for non-mixer installations and Flanged Rubber Foot (LEB/FTM) for low-speed mixers, these modules are built to withstand operational challenges. Construction materials include galvanised, or stainless steel, with PVC coating available for highly corrosive acidic conditions.
Technical Specification
| Industry | Aggregates & Cement, Chemical, Food & Drink, Manufacturing, Meat Processing, OEM, Pharmaceuticals |
|---|---|
| Use | Filling, Food Production, Manufacturing |
| Material | Stainless Steel |
| IP Rating | IP68 |
| Mobility | Static |
| Environment | Dry, Outdoors, Wet/Hygiene |
| Maximum Capacity | 15kg, 20kg, 30kg, 60kg, 80kg, 150kg, 200kg, 300kg, 400kg, 500kg, 800kg, 1000kg, 1500kg, 2000kg, 3000kg, 5000kg, 9071kg |
Literature, Manuals and Documents
Document Name
Action
LEBFT/FTM Weigh Module Catalogue
Videos
Baykon Ball & Rubber Foot Weighing Modules
Designed for industrial weighing on tanks, silos, hoppers, and platforms, the Baykon Ball & Rubber Foot Weighing Modules support up to 5t and feature built-in lift-off protection. Available in ball or flanged rubber foot versions, with galvanised, stainless-steel, or PVC-coated options for corrosive environments
Price From£383.00
