Description

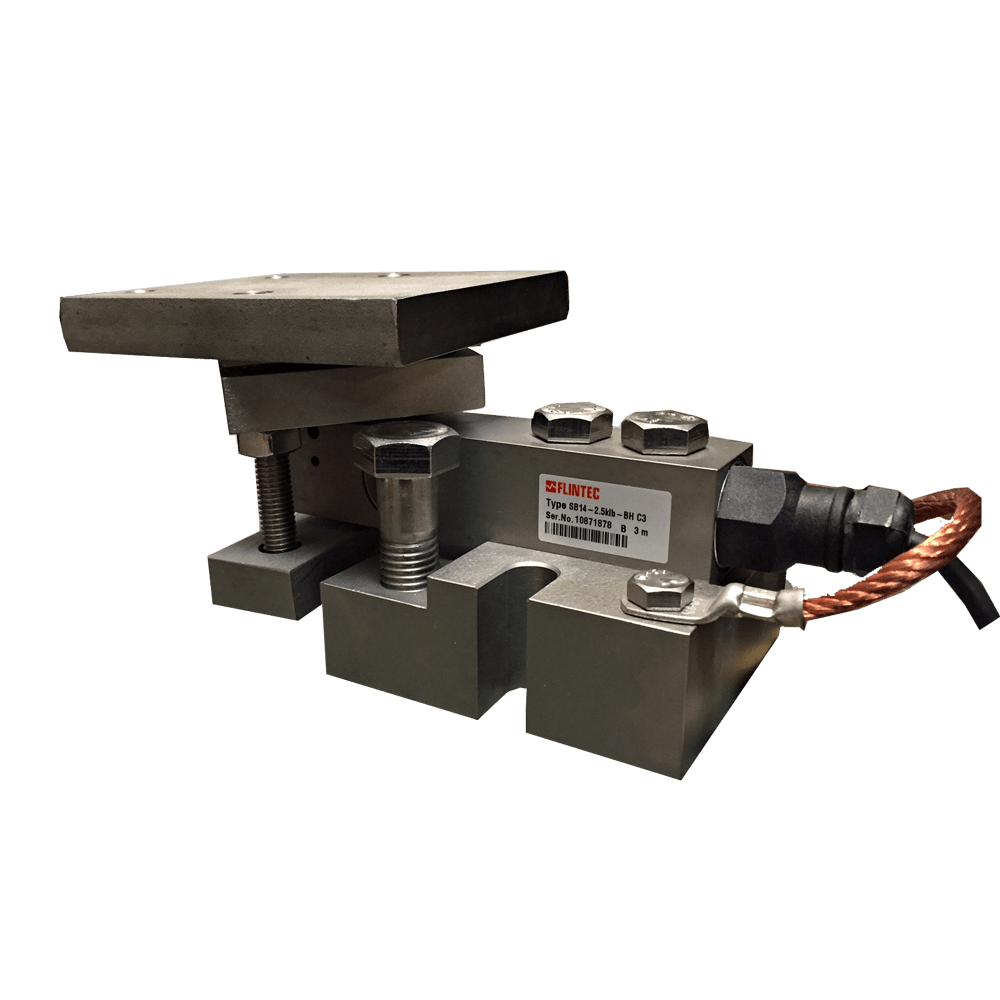

The Flintec Tank and Hopper Kit offers a complete, low-profile solution for low to medium capacity tank, mixer, and hopper weighing. It includes everything required for installation, including the loadcell, weighing module, welding plate, and base plate, making it a convenient and efficient choice for these applications.
The kit is available with either zinc-plated or stainless steel mounts, providing versatility for different environments. Depending on the configuration, the system is equipped with Flintec SLB, SB, or SB5 Loadcells, each offering reliable performance with an IP67 or IP69K rating. The kit supports a range of capacities from 91kg to 5000kg per mount, making it suitable for a variety of industrial needs.
Technical Specification
| Capacity per Mount | 91kg – 2000kg, Up to 5000kg |
|---|---|
| Mount Finish | Stainless (IP69K Loadcell), Zinc Plated (IP69K Loadcell), Stainless (IP67 Loadcell), Zinc Plated (IP67 Loadcell) |
| Use | Filling |
| Model | 5213Z-SLB, 5213Z-SB, 5213S-SLB, 5213S-SB, 5213Z-SB5, 5213Z-SB4 |
| IP Rating | IP67/IP69K |
| Material and Loadcell | Zinc Plated Mount with Flintec SLB Loadcell, Zinc Plated Mount with Flintec SB Loadcell, Stainless Steel Mount with Flintec SLB Loadcell, Stainless Steel Mount with Flintec SB Loadcell, Zinc Plated Mount with Flintec SB5 Loadcell, Zinc Plated Mount with Flintec SB4 Loadcell |
| Mobility | Static |
| IP Rating | IP67, IP69K |
| Maximum Capacity | 5000kg |
| Capacity | 91kg to 2000kg per mount, 91kg to 2000kg per mount, 91kg to 2000kg per mount, 91kg to 2000kg per mount, Up to 5000kg per mount, Up to 5000kg per mount |
| Industry | Agriculture, Automotive & Aerospace, Chemical, Manufacturing, OEM, Pharmaceuticals, Warehousing & Logistics |
Literature, Manuals and Documents
No documents available.
Videos
Flintec Tank and Hopper Kit
The Flintec Tank and Hopper Kit is a low-profile system ideal for tank, mixer, and hopper weighing. Available with zinc-plated or stainless steel mounts, it includes loadcells, weighing modules, welding plates, and base plates, with capacities ranging from 91kg to 5000kg per mount.
Price From£475.00
