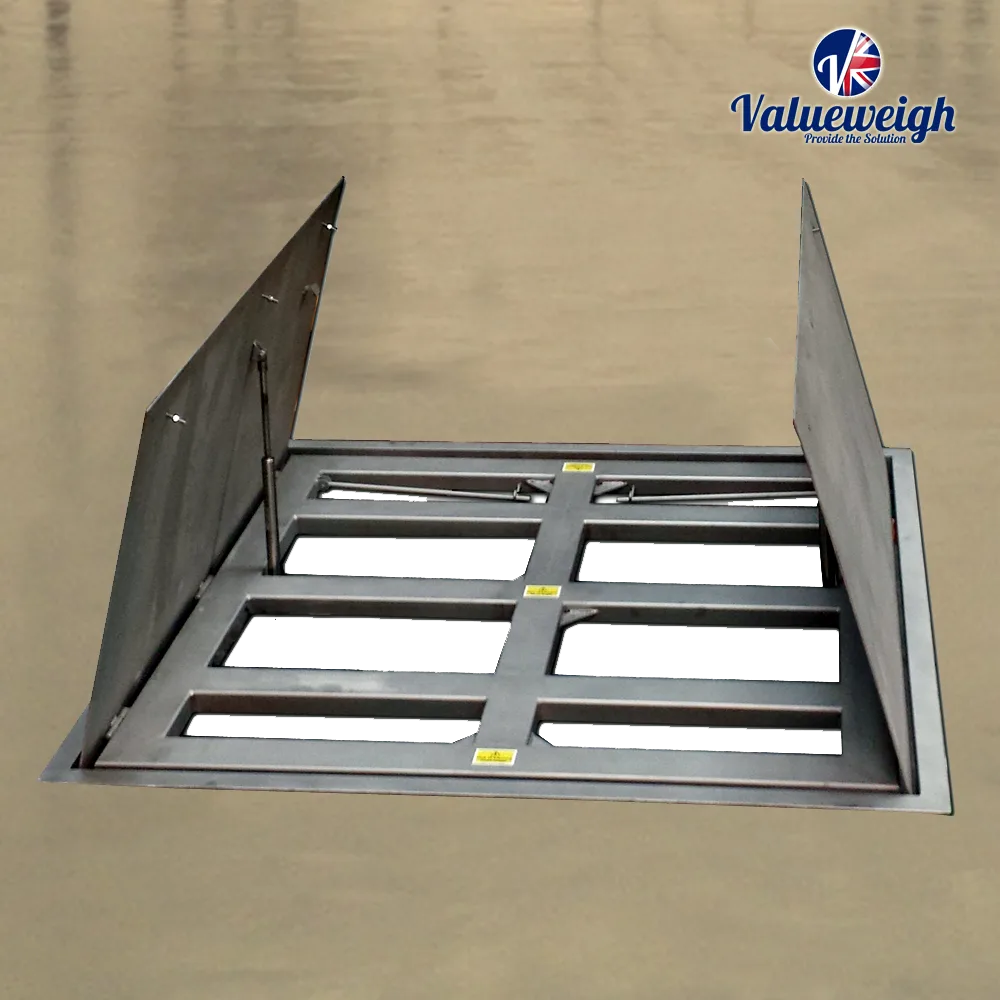

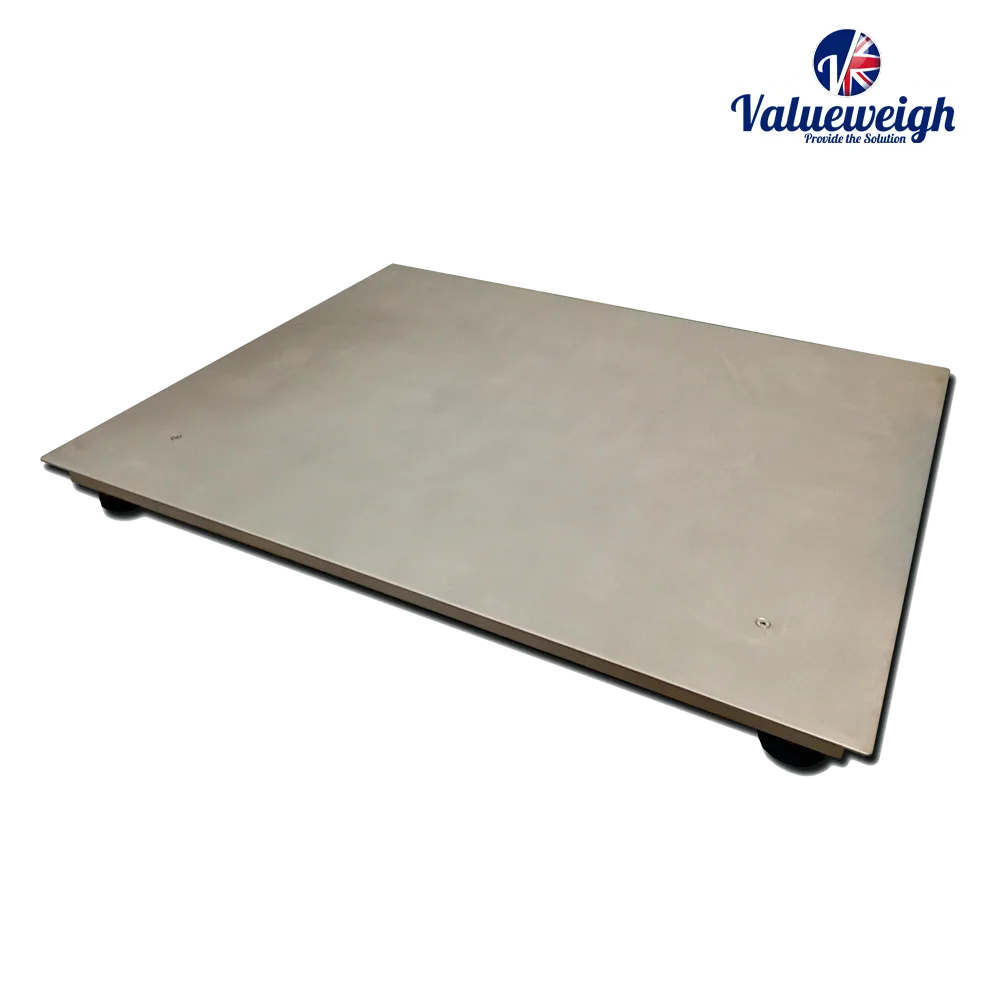

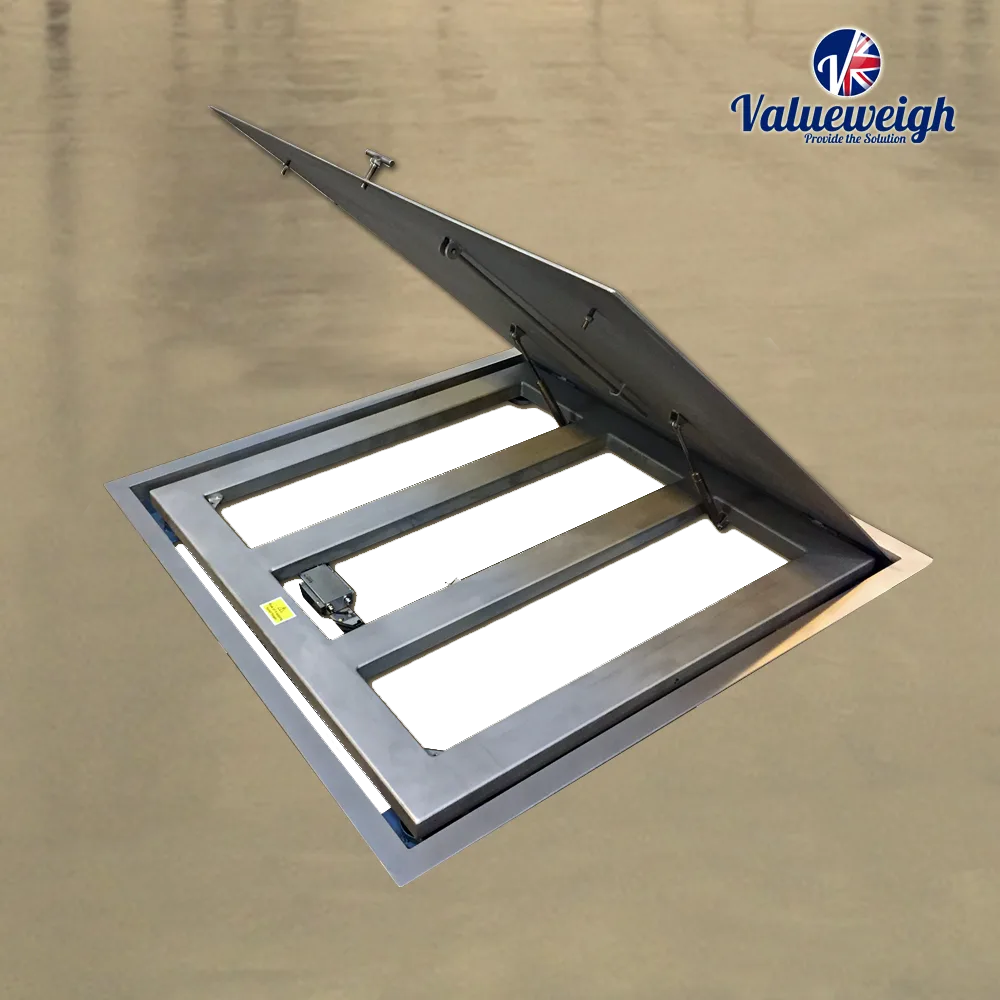

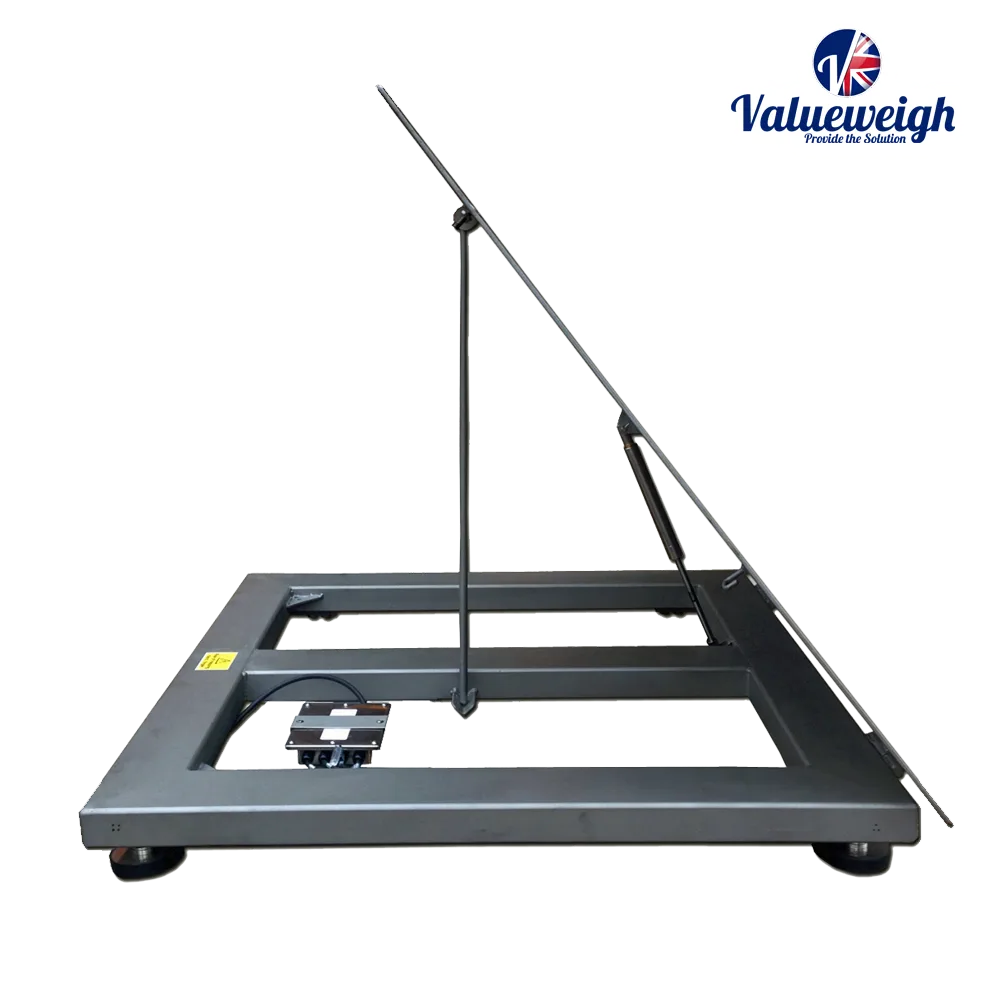

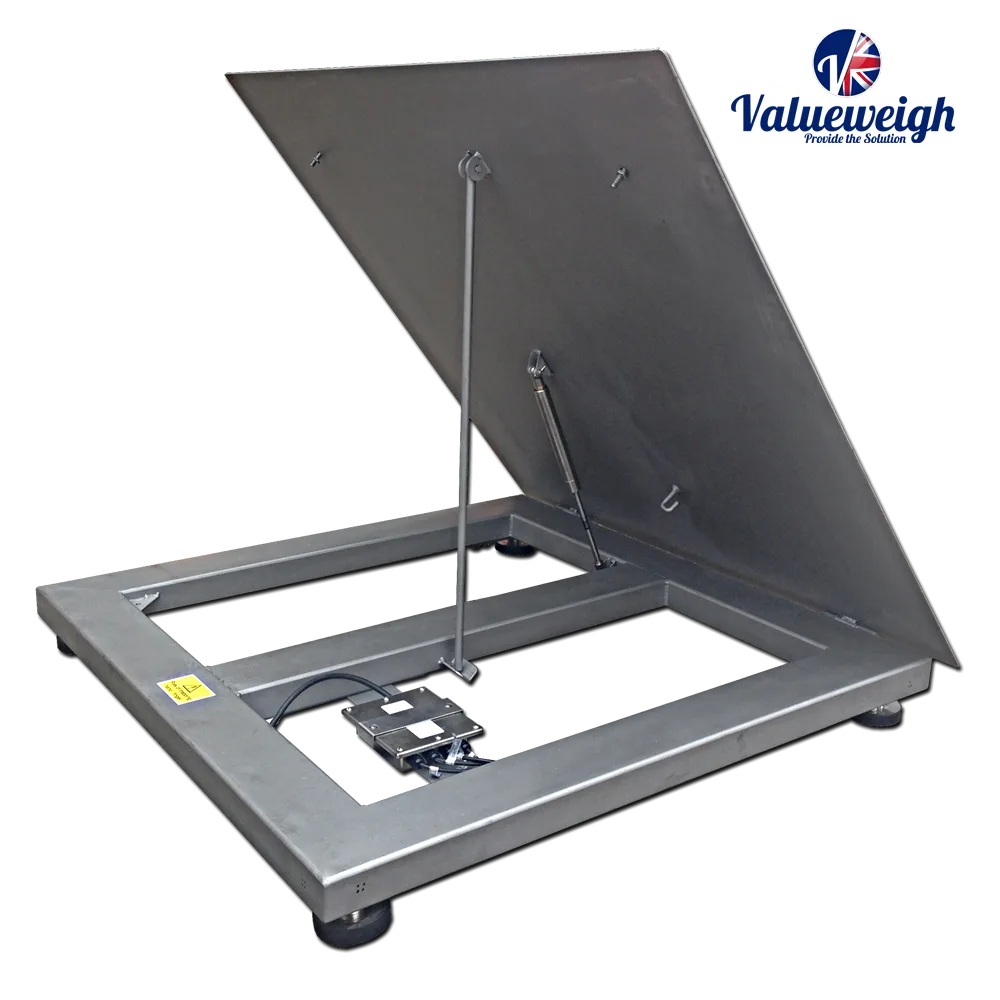

The Valueweigh VWSLT Stainless Lift-Top Scale is a premium-quality platform built for rigorous hygiene standards, making it perfect for food production and high-cleanliness areas. Designed and manufactured in the UK, it features a gas-assist lift-top with stainless steel struts, allowing the top plate to be easily raised for thorough cleaning. The IP69-rated stainless loadcells and stainless steel construction ensure it can handle high-pressure washdowns without compromising accuracy or durability. The plate is secured with smooth camlocks for maximum stability during weighing and includes a safety support strut to hold it in place while raised.

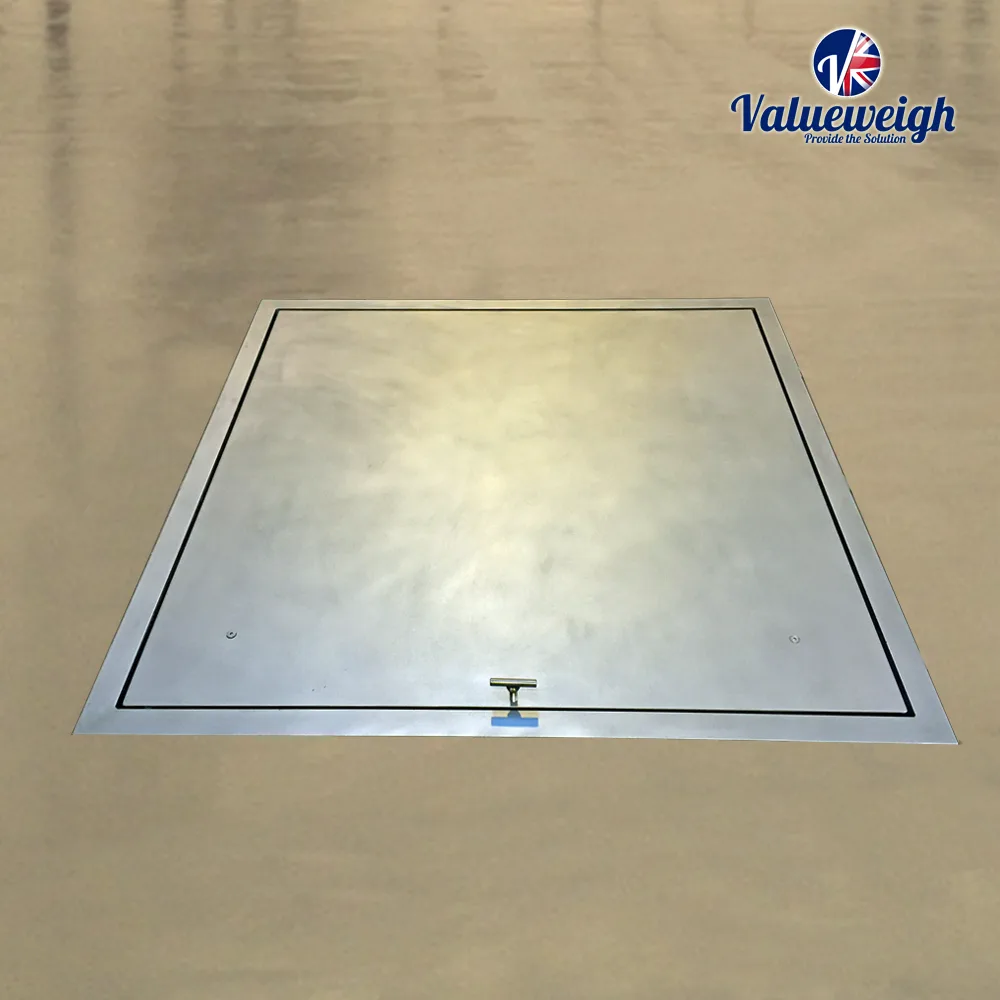

This highly customisable platform can be tailored to meet your specific needs, offering options like pit mounting, single or dual ramps, and ATEX or 316 stainless steel. With a 3,000kg capacity and backed by a 2-year warranty, the VWSLT combines reliability with ease of maintenance, ensuring dependable performance in demanding environments.
Weighing Area Dimensions | 800mm x 800mm, 1000mm x 1000mm, 1250mm x 1000mm, 1250mm 1250mm, 1500mm x 1250mm, 1500mm x 1500mm |
---|---|

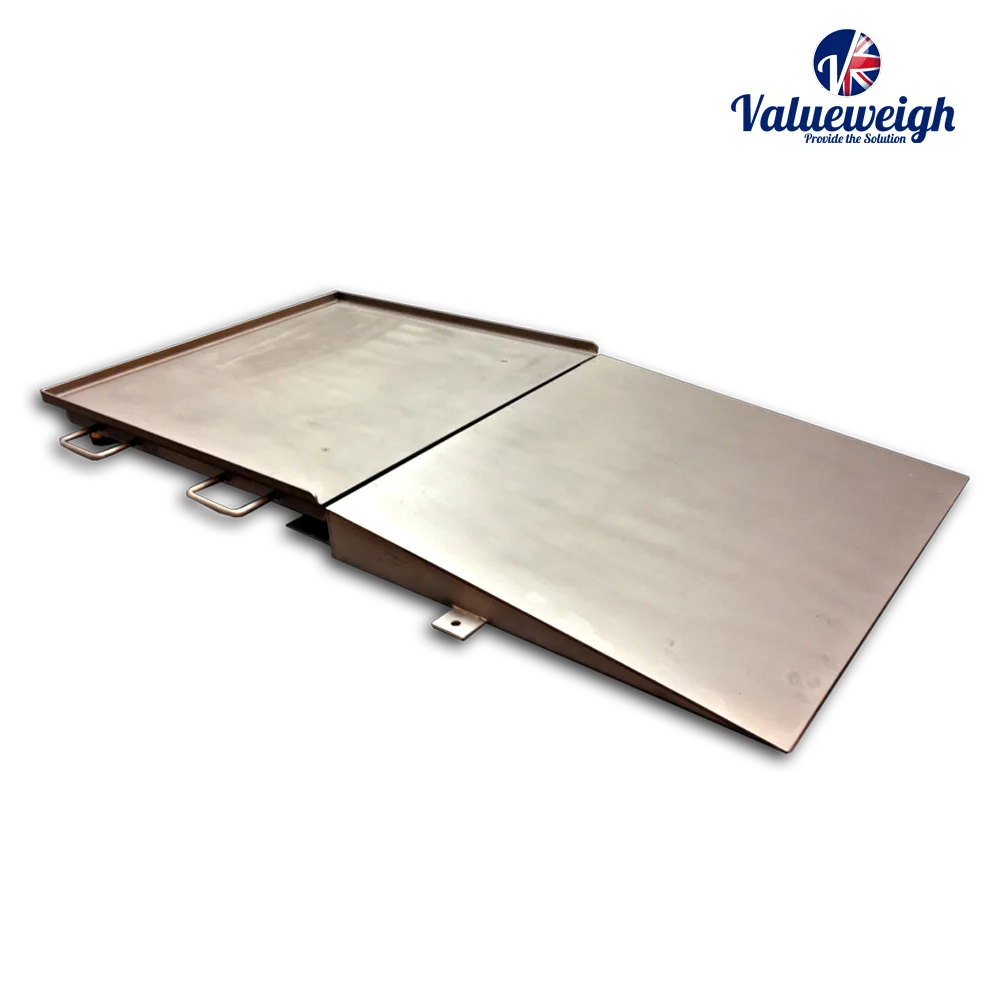

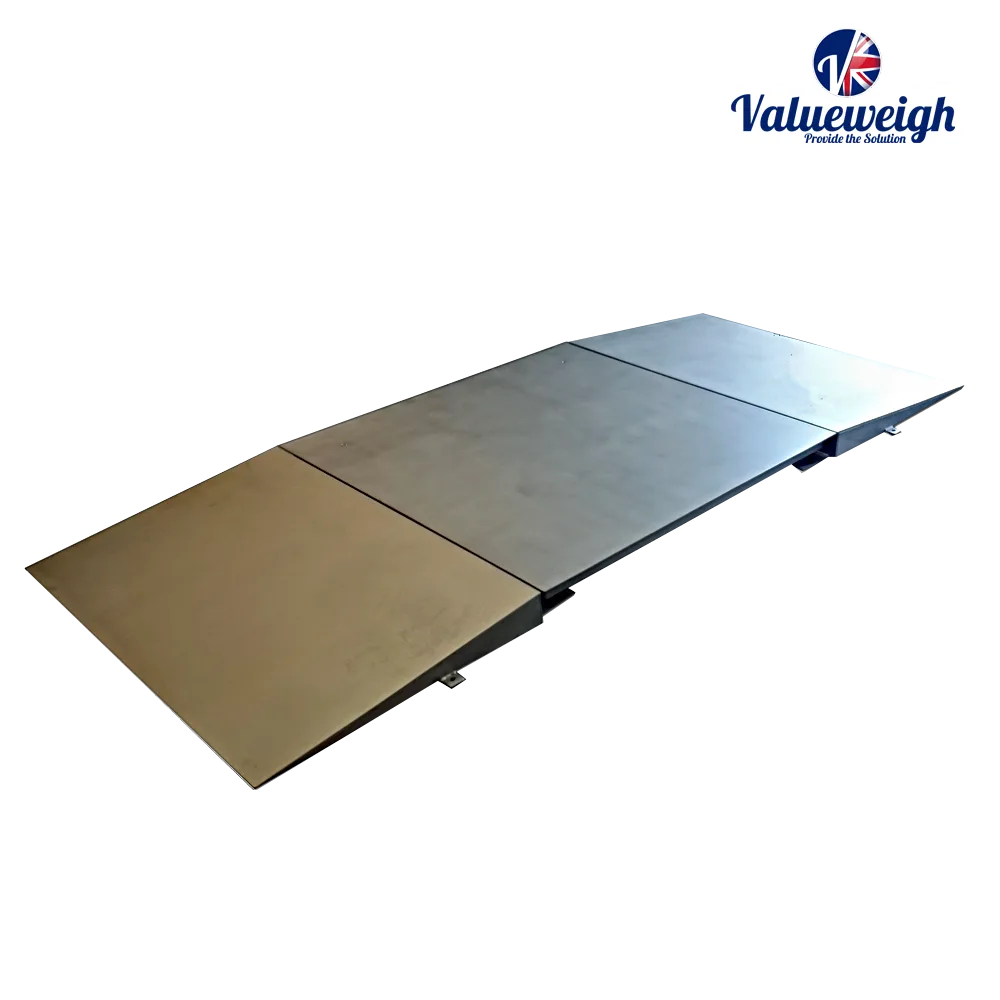

Ramp or Pit Frame | No, 1 Ramp, 2 Ramps, Full pit frame |
Scale Type | Platform Scale |
CAPACITY OPTIONS | 100kg, 150kg, 300kg, 600kg, 1000kg, 1500kg, 2000kg, 3000kg |
Use | Food Production, Goods In, Goods Out, Manufacturing, Shipping |
PLATFORM HEIGHT | Approx. 95mm |
IP Rating | IP67 |
CONSTRUCTION | 304 grade stainless steel with 5mm smooth top plate. Box section frame with 5mm top plate and stainless gas strut. |
Mobility | Static |
FINISH | Professional – dirt trap free – glass bead blast finish |
Environment | Wet/Hygiene |
LOADCELLS | 4 off Flintec OIML approved IP69 rated stainless steel loadcells |
Maximum Capacity | 3000kg |
CABLE | 5m of high quality cable with steel armoured braiding |
Industry | Agriculture, Automotive & Aerospace, Food & Drink, Manufacturing, Meat Processing, Pharmaceuticals, Recycling & Waste Reporting |
FEET | Height adjustable stainless steel rubber based mounting feet |
JUNCTION BOX | Stainless steel sealed junction box and summing board |
The Valueweigh VWSLT Stainless Lift-Top Scale is a hygienic washdown platform designed for easy cleaning. Its gas-assist lift-top, with stainless gas struts and safety support, provides effortless access for high-pressure washdowns. Available free-standing, pit-mounted, or with ramps, it’s a robust, customisable solution ideal for food production and high hygiene environments.
Price From£3,171.00
