Description

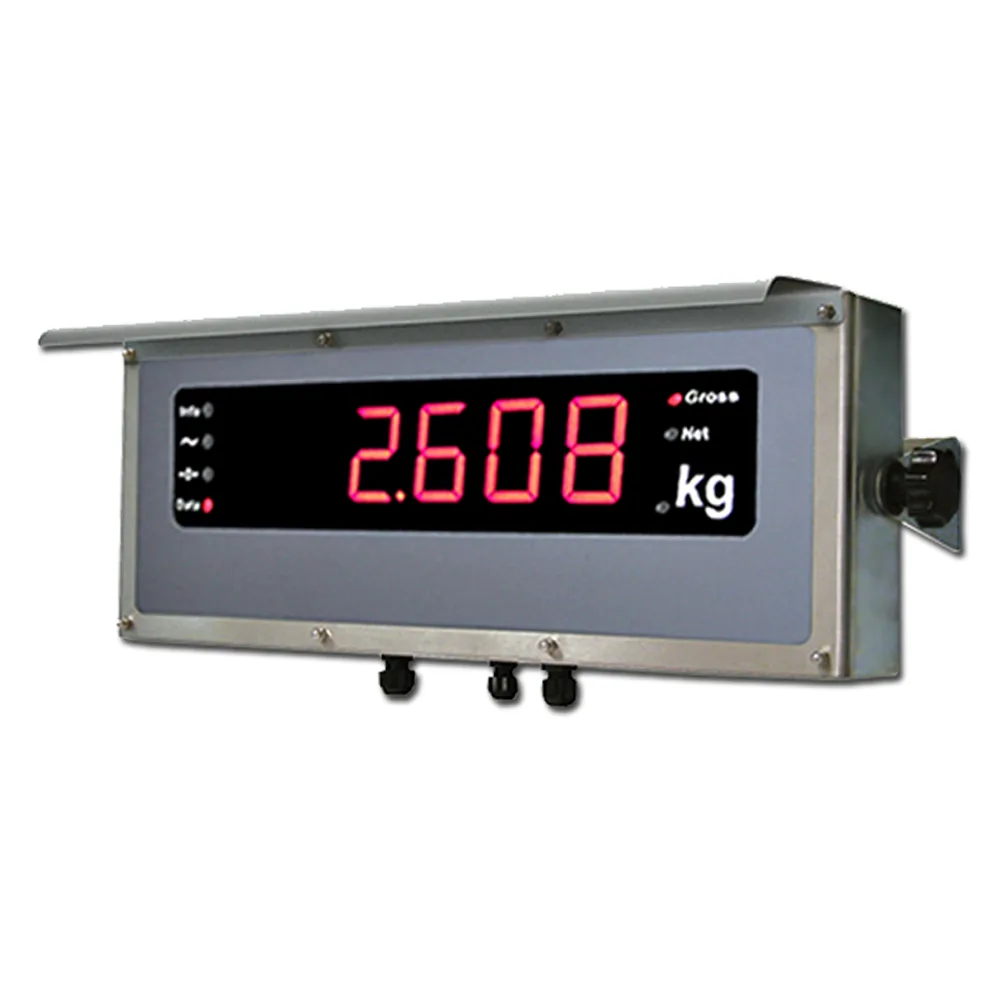

The Baykon RX57 is a robust and highly visible remote weight display specifically engineered for both indoor and outdoor applications. Encased in a sturdy stainless steel housing with an IP67 rating, it offers exceptional durability against the elements. Its large 57mm high LED display ensures that weight readings are easily visible from a distance, making it ideal for environments where quick data recognition is crucial.
Designed for versatility, the RX57 is powered by mains electricity and features a single RS232/485 port along with a 20mA current loop. This flexibility allows seamless integration with Baykon, Cardinal, Mettler Toledo, or other SMA indicators, making it a versatile addition to any weighing system.
With its combination of rugged construction and high visibility, the RX57 remote weight display is provides reliable weight measurement in any condition.
Technical Specification
| Display Technology | Red LED |
|---|---|
| Display | 6 digits, 7 segment, decimal point between digits and unit |
| Device Type | Remote Display |
| Display height | 57 mm |
| Housing Type | Enclosed |
| Brightness control | No |
| Use | Vehicle |
| Annunciators | zero, net, stable |
| IP Rating | IP67 |
| Serial interface | RS232C, RS485, and 20mA CL |
| Mobility | Static |
| Communication | 9600 baud rate, 8 byte, No parity, 1 stop bit |
| Environment | Outdoors |
| Data protocols | Baykon, Cardinal, Mettler Toledo, and SMA |
| Connectivity | 20mA CL, RS232, RS485 |
| Enclosure material | Stainless steel IP67 |
| Power Source | Mains AC |
| Sun shield | Included in the standard delivery |
| Industry | Aggregates & Cement, Agriculture, Automotive & Aerospace, Chemical, Food & Drink, Manufacturing, Meat Processing, Pharmaceuticals, Recycling & Waste Reporting, Warehousing & Logistics |
| Mounting bracket | Included in the standard delivery |
| Operating temperature range | -15°C to +55°C |
| Humidity | 90% RH max, non condensing |
| Power source | 100 – 240 VAC or 24 VDC |
| Dimensions | 182 x 467 x 70 mm |
| Weight (packed) | 6.5 kg |
Literature, Manuals and Documents
Document Name
Action
Baykon Remote Display Literature
Videos
Baykon RX57 Remote Display
The Baykon RX57 is a robust, ultra-visible remote weight display with a 57mm high LED screen, making it ideal for both indoor and outdoor use. Its stainless steel IP67-rated housing ensures durability in harsh environments, while the included sun-shield enhances visibility in bright sunlight. Compatible with Baykon, Cardinal, Mettler Toledo, and other SMA output indicators.
£800.00
