Description
The P230 Tally Roll Printer is a reliable choice for producing durable receipts and reports with impact printing, making it ideal for industrial and commercial environments. It comes with RS232 serial connectivity as standard, with an optional USB interface for added flexibility. Known for its robust construction and consistent performance, the P230 handles frequent printing tasks efficiently. This printer is particularly suited for applications where ticket durability is crucial. Additionally, free setup is provided when purchased alongside any indicator, ensuring seamless integration and ease of use. The P230 is a dependable solution for accurate and clear ticket printing.
Technical Specification
| Print method | 9-pin serial impact dot matrix |
|---|---|
| Technology | Serial Impact Dot Matrix |
| Mobility | Static |
| Print Speed | 4.70 lps (40 columns, 16.00 cpi) |
| Environment | Dry |
| Column capacity receipt | Paper width 76 mm, 33 / 40 |
| Connectivity | RS232 |
| Character size | 1.2 mm (W) x 3.1 mm (H) / 1.6 mm (W) x 3.1 mm (H) |
| Power Source | Mains AC |
| Character set | 95 Alphanumeric, 48 International, 128 x 12 Graphic |
| Industry | Aggregates, Agriculture, Automotive & Aerospace, Chemical, Food & Drink, Manufacturing, Meat Processing, Recycling & Waste Reporting, Warehousing & Logistics |
| Characters per inch | 13.3 cpi / 16 cpi |
| Colour Printing | Two Colors |
| Paper Types | Receipt |
| Copy capability receipt | one copies plus one original |
| Paper size roll paper | 76.00 ± 0.50 (W) mm x dia 83.00 mm, 69.50 ± 0.50 (W) mm x dia 83.00 mm, 57.50 ± 0.50 (W) mm x dia 83.00 mm |
| Interfaces | Bidirectional parallel, USB 2.0 Type B, Drawer kick-out, RS-232 |
| Power Supply | PS-180 |
| Operating Voltage | 24 V |
| Product dimensions | 160 x 248 x 139 mm (Width x Depth x Height) |
| Product weight | 2.3 kg |
| Colour | Epson Dark Grey / Epson Cool White |
| Installation | horizontally, vertically with wall hanging bracket |
| Interface connectors | D.K.D. function (2 drivers) |
| Noise Level | Operation: 64 dB (A) |
| Humidity | Operation 10% – 90%, Storage 10% – 90% |
| Temperature | Storage -10° C – 50° C |
| Reliability | 18, 000, 000 MCBF (Lines), 180, 000 MTBF (Hours) |
| Auto Cutter Life | 800, 000 Cuts |
| Printer Life | 7, 500, 000 lines |
| EMC Standards | CE marking |
| Safety standards | TV |
Literature, Manuals and Documents
Document Name
Action
P230 & P231 Printers Technical Specification
Videos

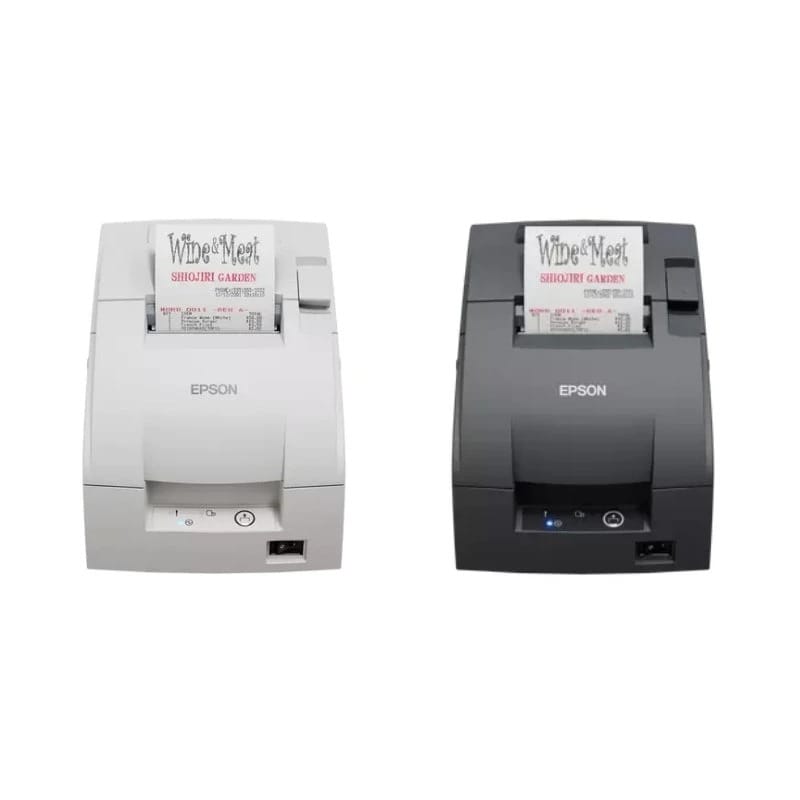

Epson P230 Tally Roll Printer
The P230 Tally Roll Printer is an impact printer (aka dot matrix) for receipts and reports, featuring RS232 connectivity with optional USB. Free setup by our engineers is included when purchased with any indicator.
£500.00
