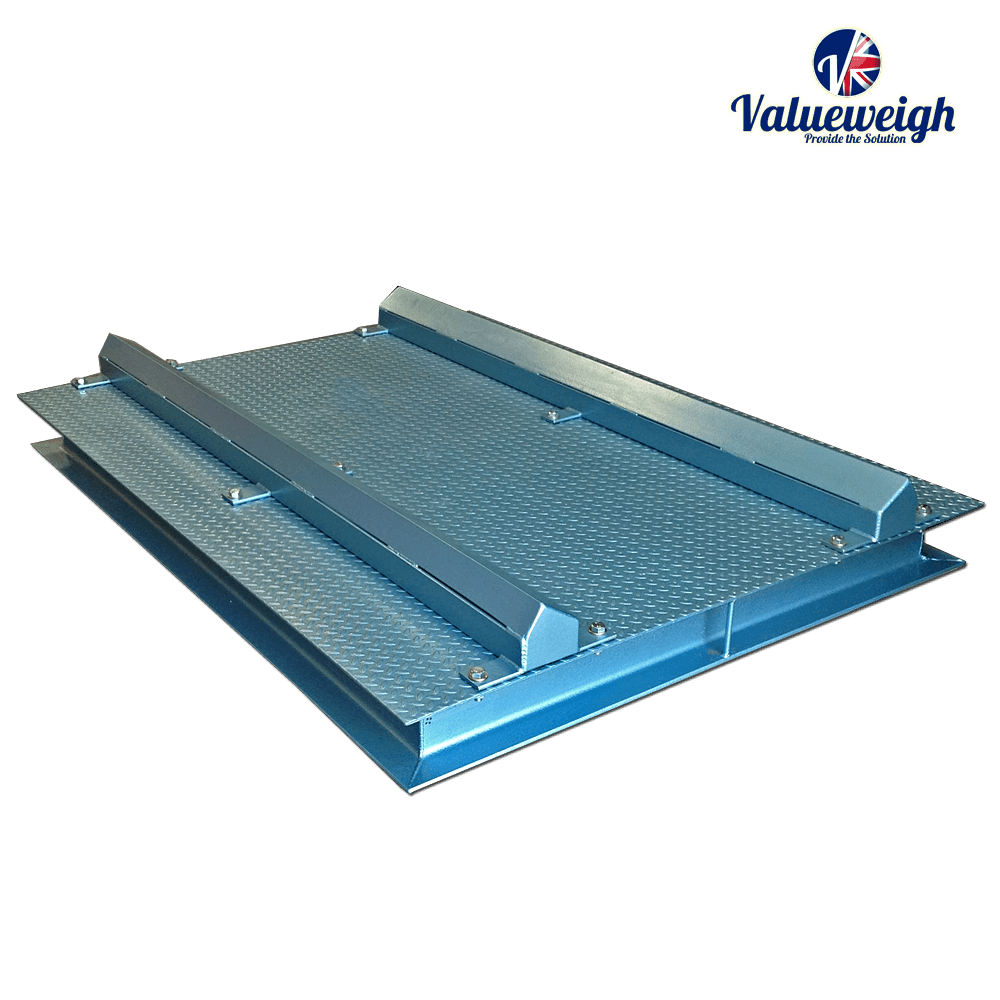

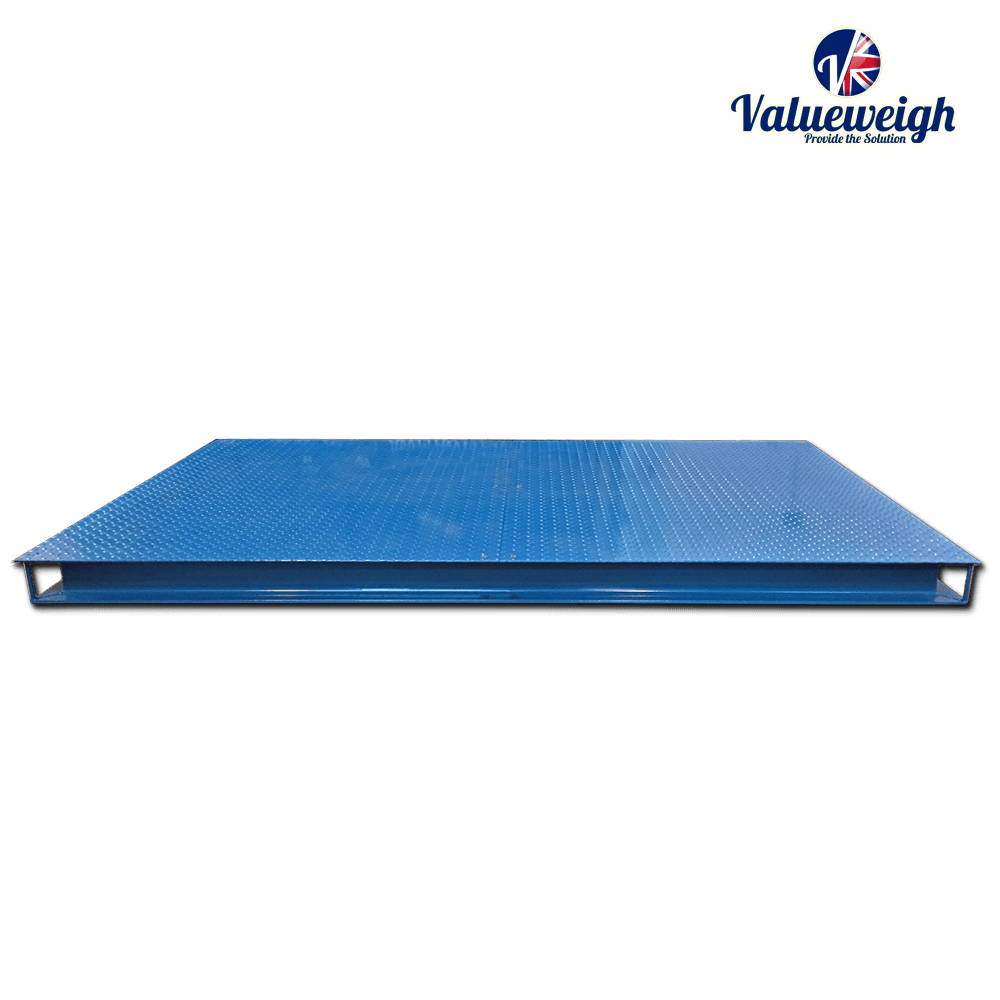

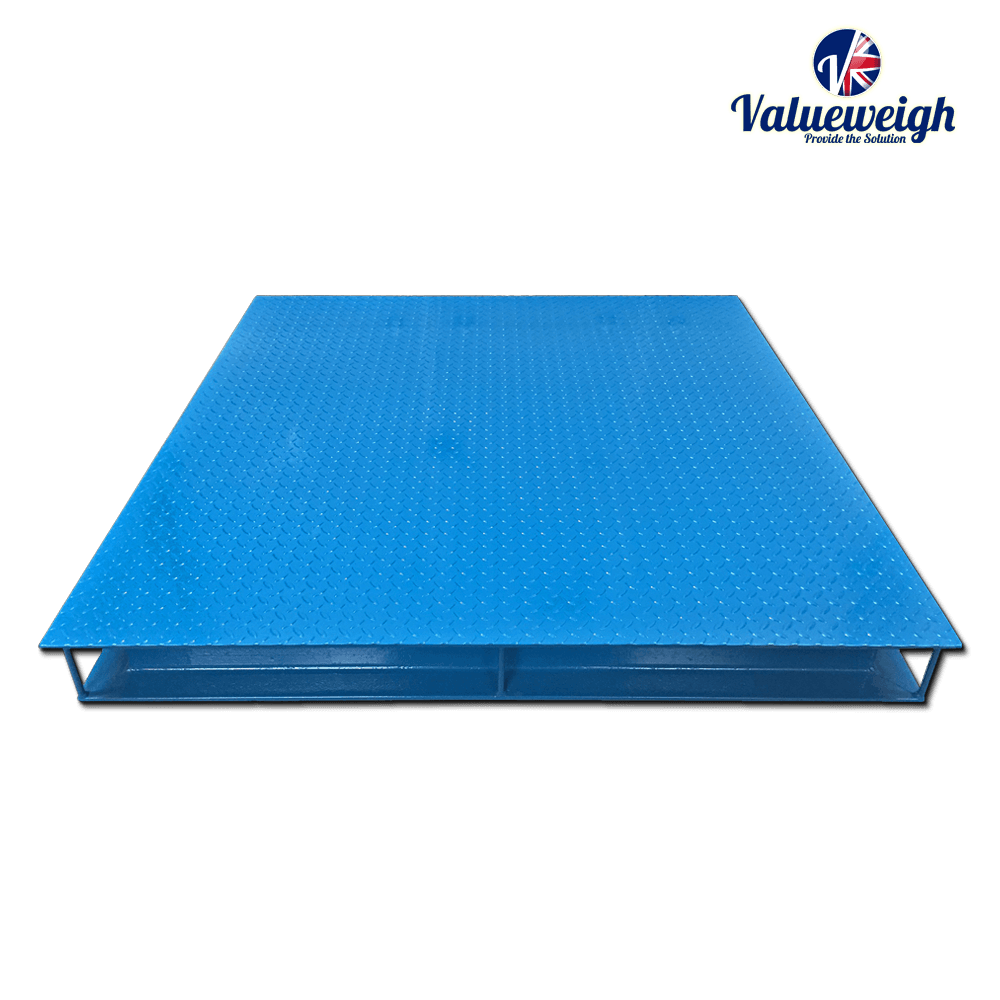

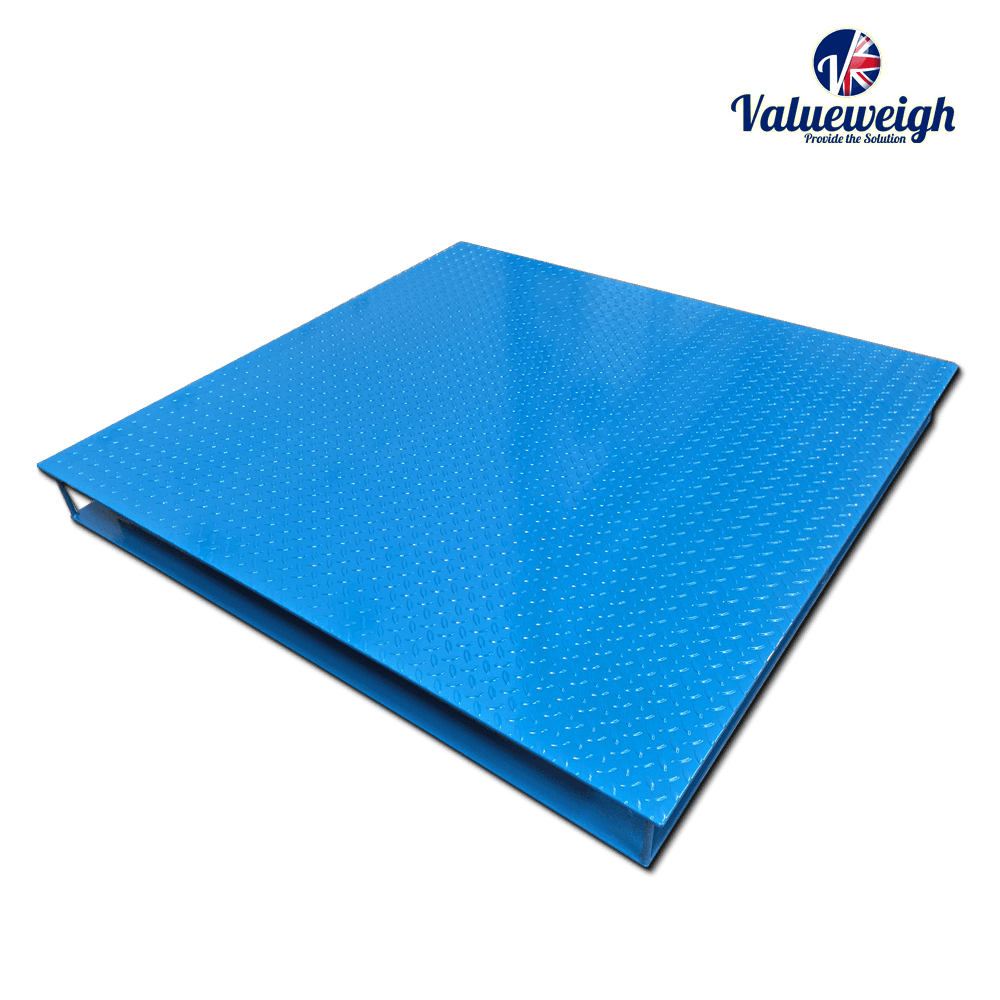

The Valueweigh VWEHD Extra High Capacity Platform Scale offers exceptional durability and reliability for heavy-duty industrial applications. Manufactured in the UK, this scale is built to handle extreme environments with a maximum capacity of up to 10,000kg (custom higher capacities available on request). It features OIML-approved, IP67-rated stainless steel loadcells for accurate, dependable weighing performance.
Designed for flexibility, the scale can be customised to your specific needs, including dimensions, capacity, colour, ramps, pit mounting, and mounting frames. The rugged mild steel construction is finished with a tough powder coating, and the scale includes stainless height-adjustable feet and a sealed stainless junction box. Backed by a 2-year warranty, the VWEHD platform scale is ideal for the toughest industrial environments, providing reliable, high-capacity weighing for years to come.
| Weighing Area Dimensions | 1250mm x 1250mm, 1500mm x 1250mm, 1500mm x 1500mm, 1800mm x 1250mm, 1800mm x 1500mm, 2000mm x 2000mm |
|---|---|
| Maximum Capacity | 8000kg, 15000kg |
| Pit Frame | No, Full pit frame and removable top plate, Locating frame for existing pit |
| Use | Goods In, Goods Out, Manufacturing, Shipping |
| CAPACITY OPTIONS | VWHD: 1000kg, 1500kg, 2000kg, 3000kg, 5000kg VWEHD: 2000kg, 3000kg, 5000kg, 6000kg, 10000kg (Higher capacity options available on request) |
| IP Rating | IP67 |
| PLATFORM HEIGHT | VWHHD: Approx. 140mm to Weighing Area VWEHD: Approx. 166mm to Weighing Area |
| Mobility | Static |
| CONSTRUCTION | Mild steel with durbar/checker top plate (smooth plate optional) VWHD: 100 x 50 x 5 PFC frame on-side with 5mm durbar/6.5mm dimple top plate VWEHD: 125 x 65 PFC frame on-side with 6mm durbar/7.5mm dimple top plate |
| Environment | Dry |
| FINISH | Professional tough powder-coated blue finish |
| Maximum Capacity | 15000kg |
| LOADCELLS | 4 off Flintec OIML approved IP67 rated stainless steel loadcells |
| Industry | Agriculture, Automotive & Aerospace, Food & Drink, Manufacturing, Meat Processing, Recycling & Waste Reporting |
| CABLE | 5m of high quality cable with steel armoured braiding |
| FEET | Height adjustable stainless steel rubber based mounting feet |
| JUNCTION BOX | Stainless steel sealed junction box and summing board |
| What type of scale are you building? | Platform & Floor Scale |
The Valueweigh VWEHD Extra High Capacity Platform Scale, made in the UK, is built for heavy-duty industrial weighing, full customisable for your needs. With a capacity of up to 10,000kg (higher capacities available), it features OIML-approved IP67 waterproof loadcells, ensuring reliable performance in tough environments.
Price From£3,583.00
