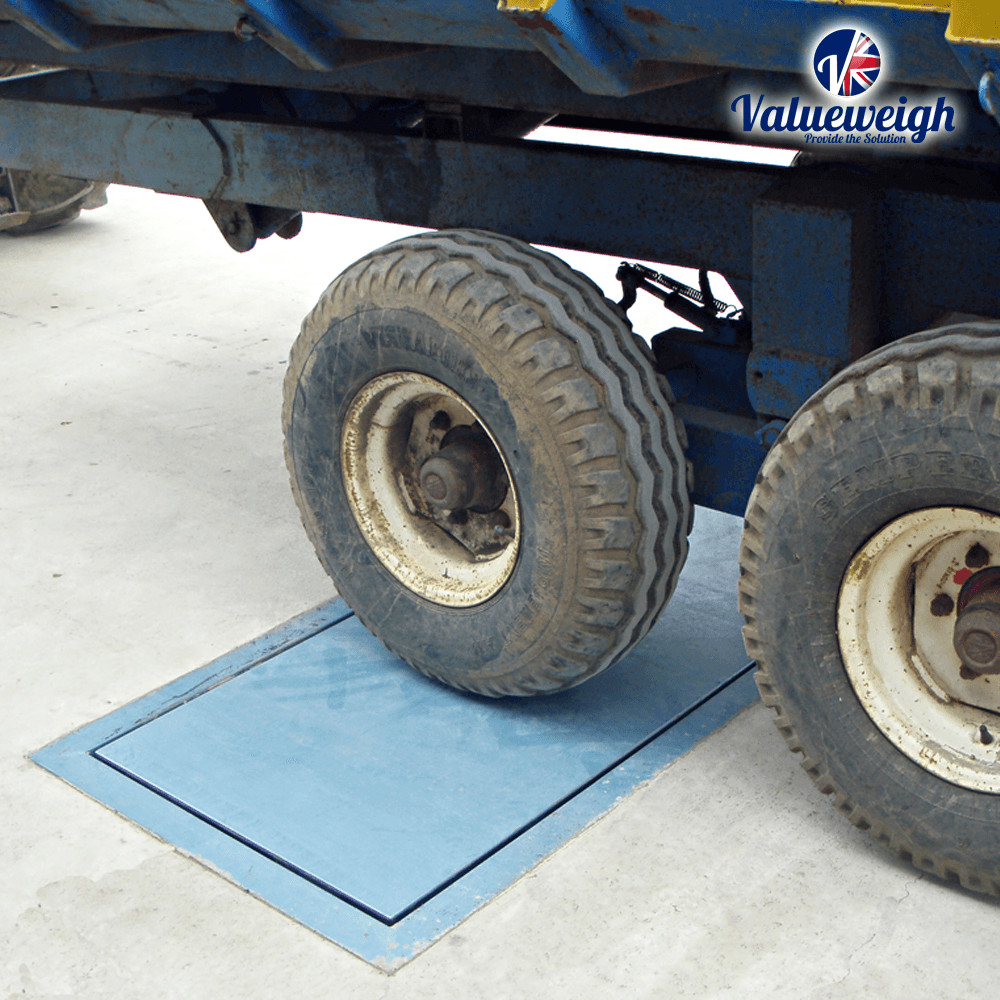

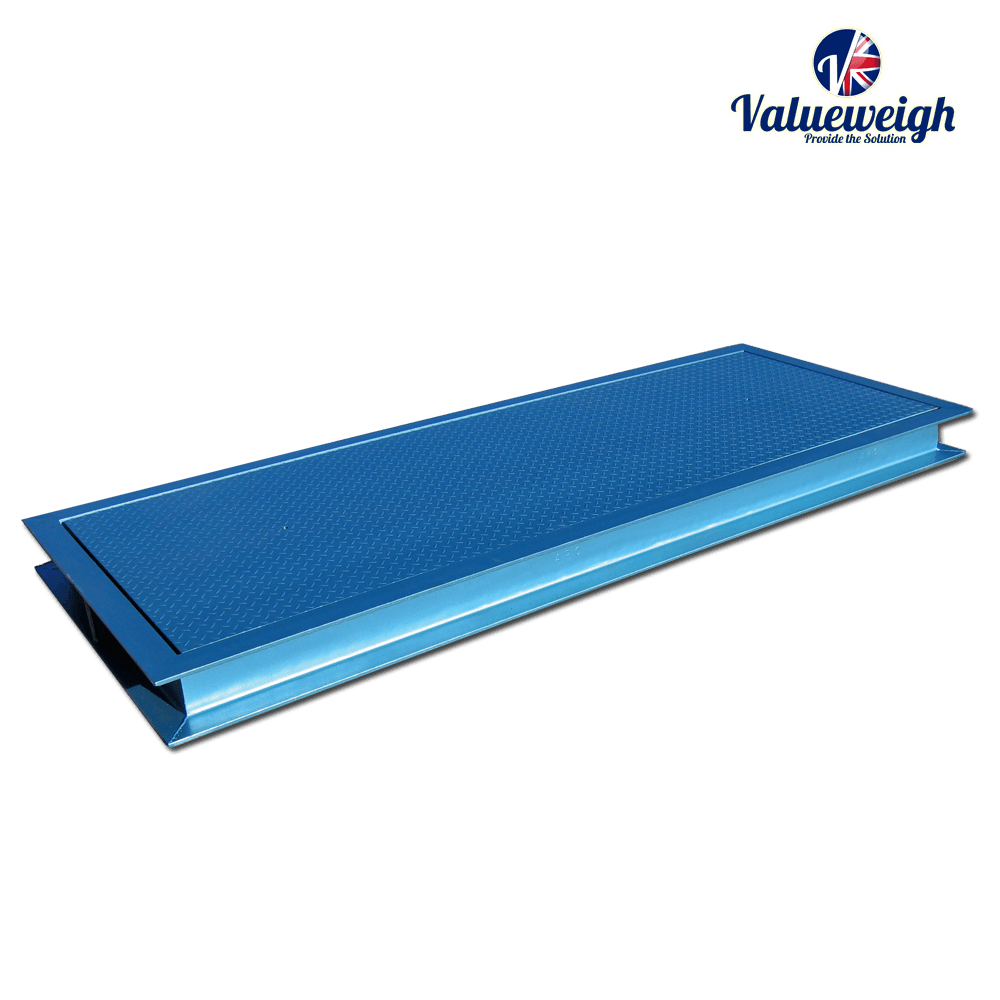

The Valueweigh In-Ground Axle Platform Scale (VWAW) is designed for efficient and accurate axle weighing, making it perfect for high-throughput sites where quick vehicle movement is essential. With dynamic weighing capabilities, this scale ensures fast weighing without slowing down traffic. The platform’s robust construction and high-quality components guarantee stability and reliability, even in demanding environments.
Available in models with axle weighing capacities up to 25,000kg, the VWAW is ideal for a wide range of vehicles. The scale includes a pit frame for easy installation into new or existing pits, and features a convenient access plate for servicing, allowing for easy maintenance. Compatible with a range of displays and software, the VWAW provides the flexibility needed for accurate, efficient axle weighing.
| Weighing Area Dimensions | 2500mm x 750mm, 3000mm x 750mm |
|---|---|
| Capacity | 5000kg, 12000kg, 15000kg, 25000kg |
| What type of scale are you building? | Vehicle Scale |
| PLATFORM HEIGHT | VWAW: Approx 151 mm VWHDAW: Approx 178mm |
| Use | Vehicle |
| CONSTRUCTION | Mild Steel |
| IP Rating | IP67 |
| BUILD | VWAW: 125 x 65 PFC on side frame with 6mm durbar top plate (2.5mm dimple) VWHDAW: 150 x 75 PFC on side frame with 8mm durbar top plate (2.5mm dimple) |
| Mobility | Portable |
| FINISH | Powder Coated Powder |
| Environment | Dry, Outdoors |
| LOADCELLS | VWAW: 4 Flintec SB5 OIML approved IP67 rated stainless steel loadcells VWHDAW: 4 Flintec SB5 IP67 rated stainless steel loadcells |
| Maximum Capacity | 25000kg |
| CABLE | 10m of high quality cable with steel amoured braiding |
| Industry | Aggregates & Cement, Agriculture, Automotive & Aerospace, Food & Drink, Recycling & Waste Reporting, Warehousing & Logistics |
| FEET | Flintec stainless steel mounting feet |
| JUNCTION BOX | BJS-04 stainless steel junction box with summing board |
The Valueweigh In-Ground Axle Platform Scale (VWAW) offers fast, accurate dynamic axle weighing, ideal for busy sites. With a robust design and pit frame for easy installation, this scale provides weighing capacities up to 25,000kg, ensuring reliable performance for both dynamic and static weighing.
Price From£4,665.00
