Description

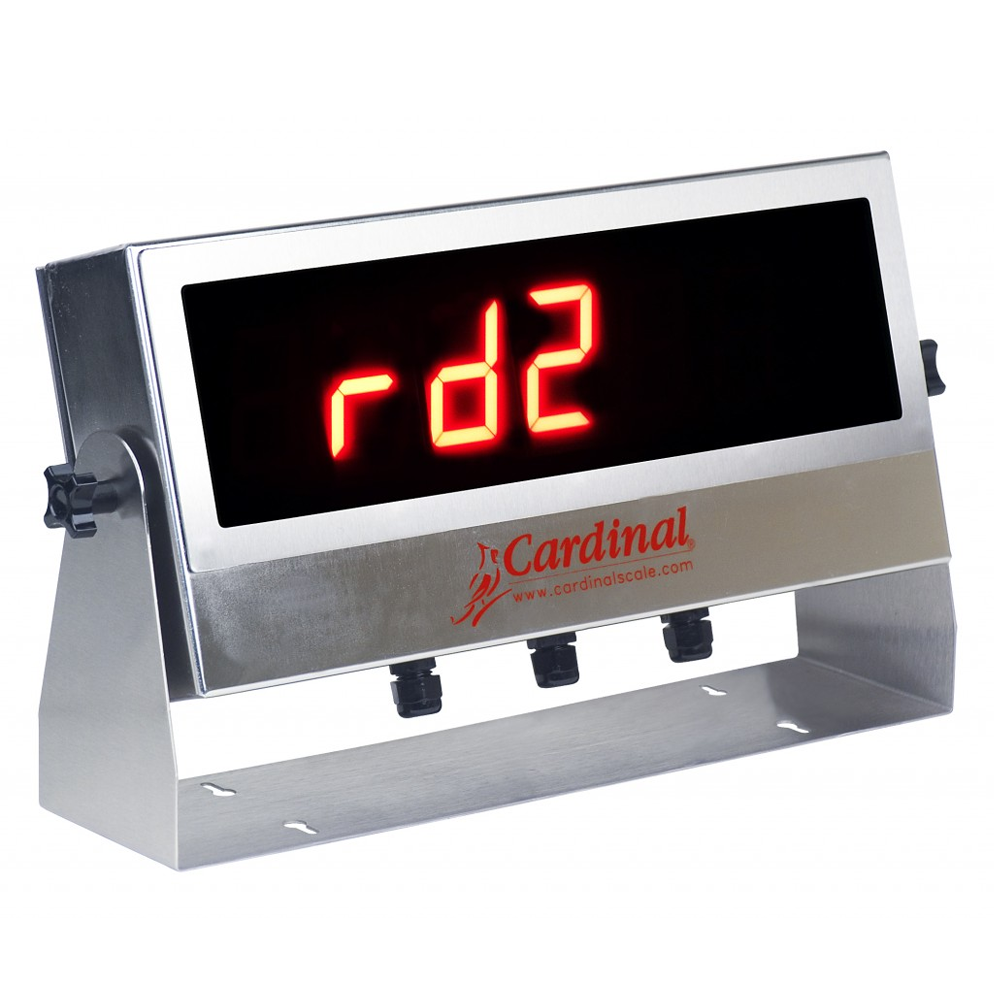

The Cardinal RD2 is an intelligent remote display crafted for scales and weighbridges, combining advanced technology with practical features. Its IP66-rated stainless steel housing ensures durability in a variety of environments, while the 57mm high LED display is exceptionally bright and visible from distances of up to 150 feet. This makes it ideal for both indoor and outdoor use.
A standout feature of the RD2 is its intelligent auto-learn capability, which enables it to automatically identify and select the appropriate serial protocol for various manufacturers’ indicators.
This feature significantly simplifies installation and setup, allowing for easy integration with a wide range of equipment. The display is mains powered and includes a single RS232 port.
Technical Specification
| Power Requirements | 94 to 264 VAC, 47/63 Hz Universal Input |
|---|---|
| Protection Rating | IP66 |
| Device Type | Remote Display |
| Operating Environment | -23ºC to +49ºC |
| Housing Type | Enclosed |
| Display | Six-digit, seven-segment 57 mm high LED |
| Use | Vehicle |
| Interface | 20mA current loop, RS-232 |
| IP Rating | IP66 |
| Annunciators | lb, kg, T, t, G, N |
| Mobility | Static |
| Display Capacity | -99999 to 999999 |
| Environment | Outdoors |
| Enclosure | Stainless steel |
| Connectivity | RS232 |
| Viewing Range | 150 |
| Power Source | Mains AC |
| Shipping Weight | 7.3 kg |
| Industry | Aggregates & Cement, Agriculture, Automotive & Aerospace, Chemical, Food & Drink, Manufacturing, Meat Processing, Pharmaceuticals, Recycling & Waste Reporting, Warehousing & Logistics |
Literature, Manuals and Documents
Document Name
Action
Cardinal Remote Displays Literature
Videos
Cardinal RD2 Remote Display
The Cardinal RD2 is an intelligent remote display for scales and weighbridges, featuring a robust IP66 waterproof rated stainless steel housing and an ultra-clear 57mm high LED display visible from up to 150ft away. With up to 10 brightness levels and an auto-learn function for serial protocol compatibility, it seamlessly integrates with most manufacturers’ indicators.
£980.00
