Description

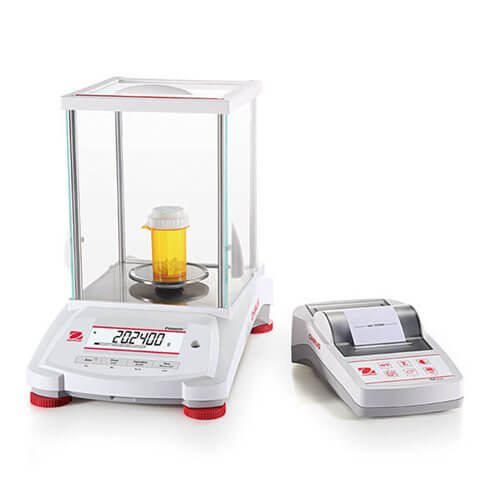

The OHAUS Pioneer™ Analytical Balance is engineered for accurate and efficient weighing in everyday laboratory applications. It provides a capacity of 120 g with a readability of 0.1 mg, ensuring precise measurements for various samples. Designed with user convenience in mind, the balance features a straightforward interface that simplifies operations.
The Pioneer™ series includes essential ports to facilitate data transfer and integration with laboratory systems. Built to withstand the demands of daily use, the balance offers a combination of performance and durability, making it a valuable tool for laboratories requiring dependable weighing solutions.
Technical Specification
| Capacity | 120g, 220g |
|---|---|
| Readability | 0.1mg |
| EC Type Approved | Yes, No |
| Approved Model | PX125DM, PX85M, PX225DM, PX124M, PX224M |
| Verification Interval (e) (g) | 0.001 |
| Class (Approved Models) | I |
| Capacity (g) | 52/120, 82, 82/220, 120, 220 |
| Readability d, Fine Range (g) | 0.00001 |
| Readability d, Full Range (g) | 0.0001, 0.00001, 0.0001, 0.0001 |
| Repeatability (sd.), ≤5% of Full Load (g) | 0.00001, 0.00008 |
| Repeatability (sd.), 5% of Full Load to Fine Range Max (g) | 0.00002 |
| Repeatability (sd.), Fine Range Max to Full Range (g) | 0.0001, 0.00002, 0.0001, 0.0001 |
| Linearity deviation, Typical (g) | ± 0.00006 |
| Linearity deviation (g) | ± 0.0001, ± 0.0002 |
| Stabilization Time (s) | 10, 3 |
| Sensitivity Temperature Drift (PPM/K) | ± 2 |
| Min-Weight (typical) (USP, K=2, U=0.10%) | 20 mg, 160 mg |
| Min-Weight (optimal) (USP, K=2, U=0.10%, SRP≤0.41d) | 8.2 mg, 82 mg |
| Units | Milligram, Gram, Kilogram, Ounce, Pound, Carat, Pennyweight, Ounce Troy, Grain, Newton, Hong Kong Tael, Singapore Tael, Taiwan Tael, Momme, Tical (MM), Mesghal, Tola (India), Baht, 1 Custom unit |
| Units (Approved Models) | g, mg, ct |

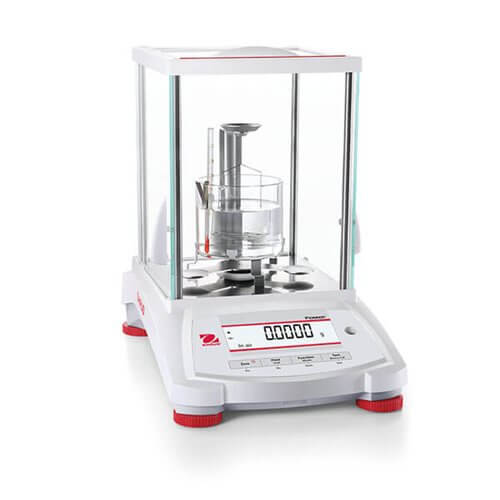

| Applications | Basic Weighing, Parts Counting, Percent Weighing, Animal Weighing, Density Determination, Formulation |
| Pan Size (Ø) | 80 mm, 90 mm |
| Power Supply | Power Input: 100 – 240V ~ 200mA 50 – 60Hz 12 –18VA, Power Output: 12 VDC 0.5A |
| Assembled Dimensions (W × D × H) | 209 × 321 × 309 mm |
| Communication | RS232 and USB |
| Operating Temperature Range | Operating conditions for ordinary lab application: +10°C to 30°C (operability guaranteed between +5°C and 40°C). |
| Net Weight | 4.5 kg |
| Shipping Weight | 7 kg |
| Shipping Dimensions (W × D × H) | 507 × 387 × 531 mm |
Literature, Manuals and Documents
Document Name
Action
Videos
Ohaus Pioneer™ Analytical Balance
The OHAUS Pioneer Analytical Balance offers reliable precision for routine laboratory tasks, featuring a 120 g capacity with 0.1 mg readability, a user-friendly interface, and essential connectivity options.
Price From£1,435.00
