Description

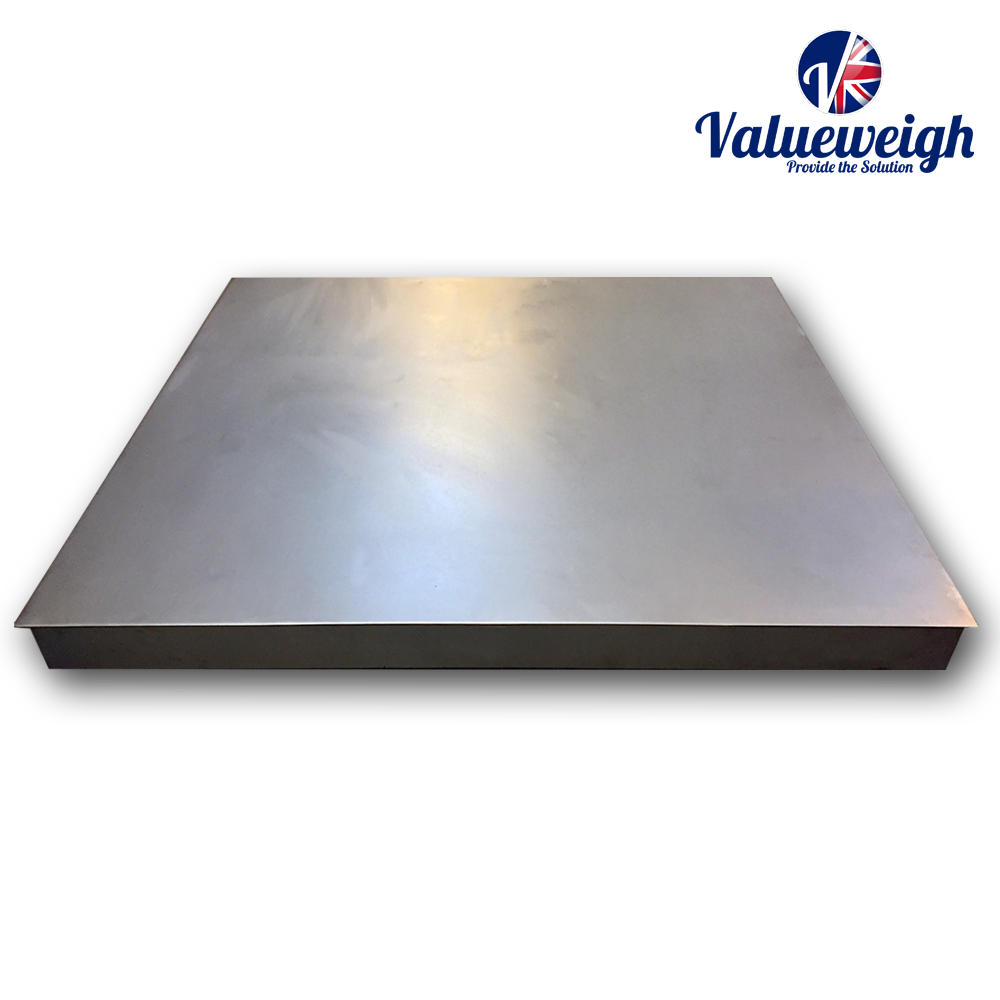

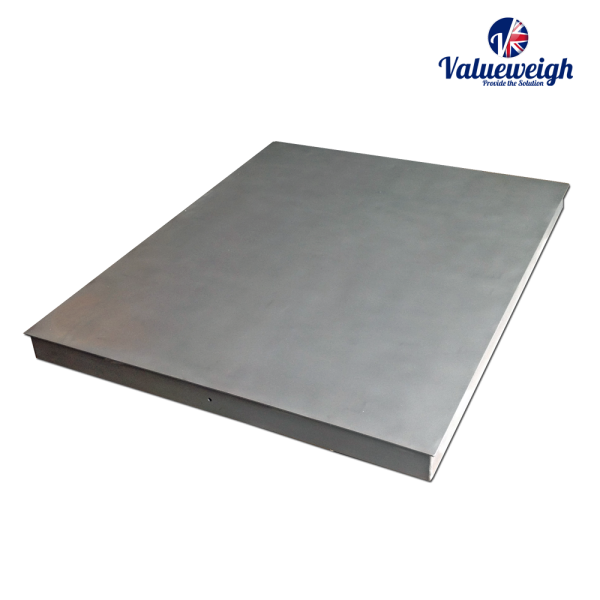

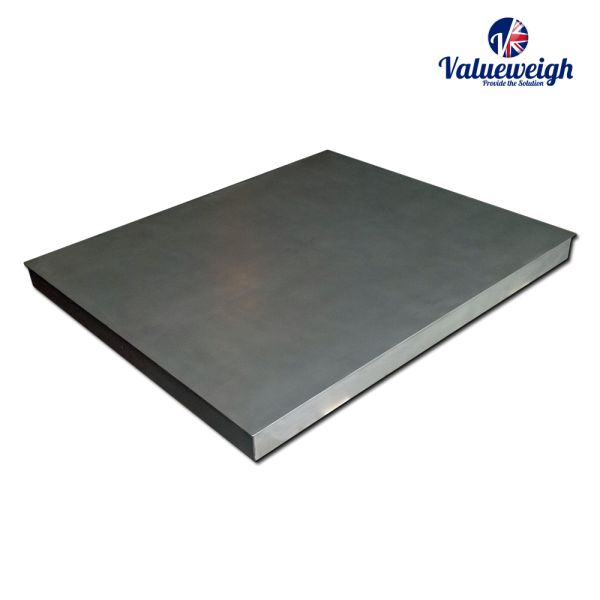

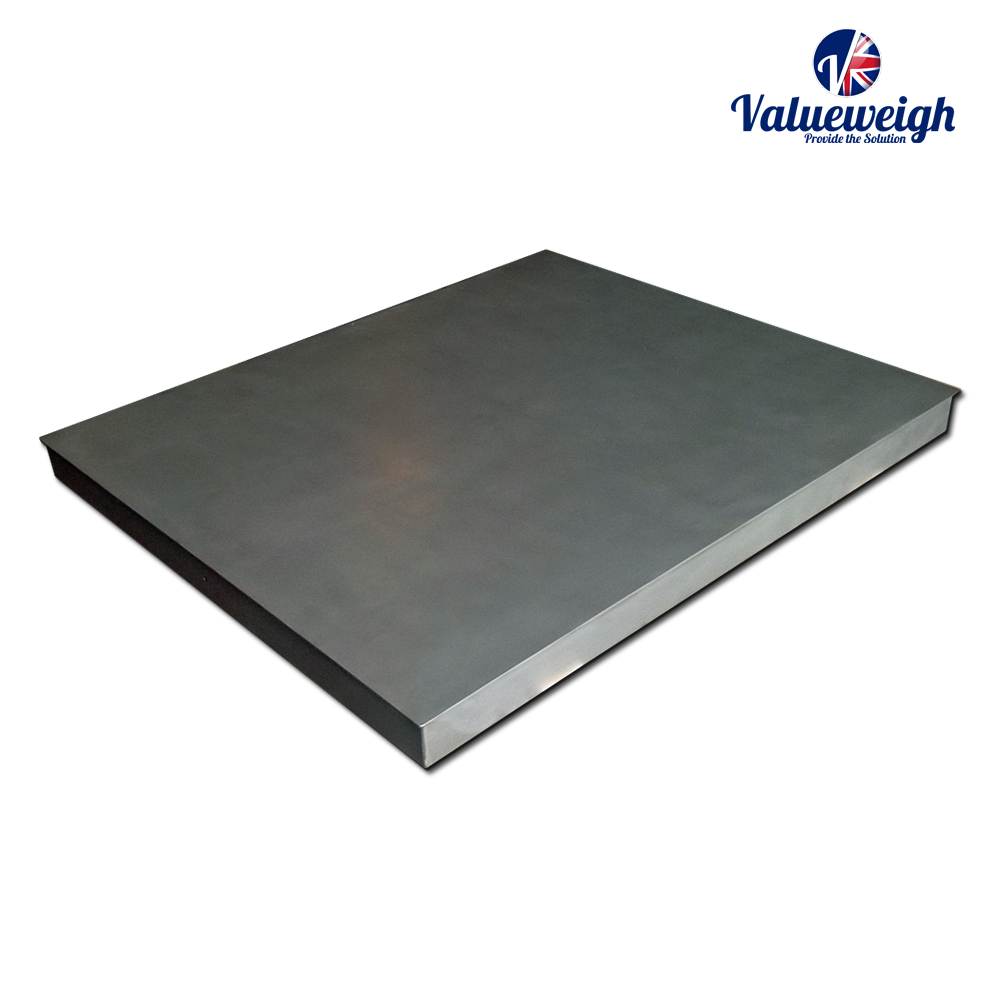

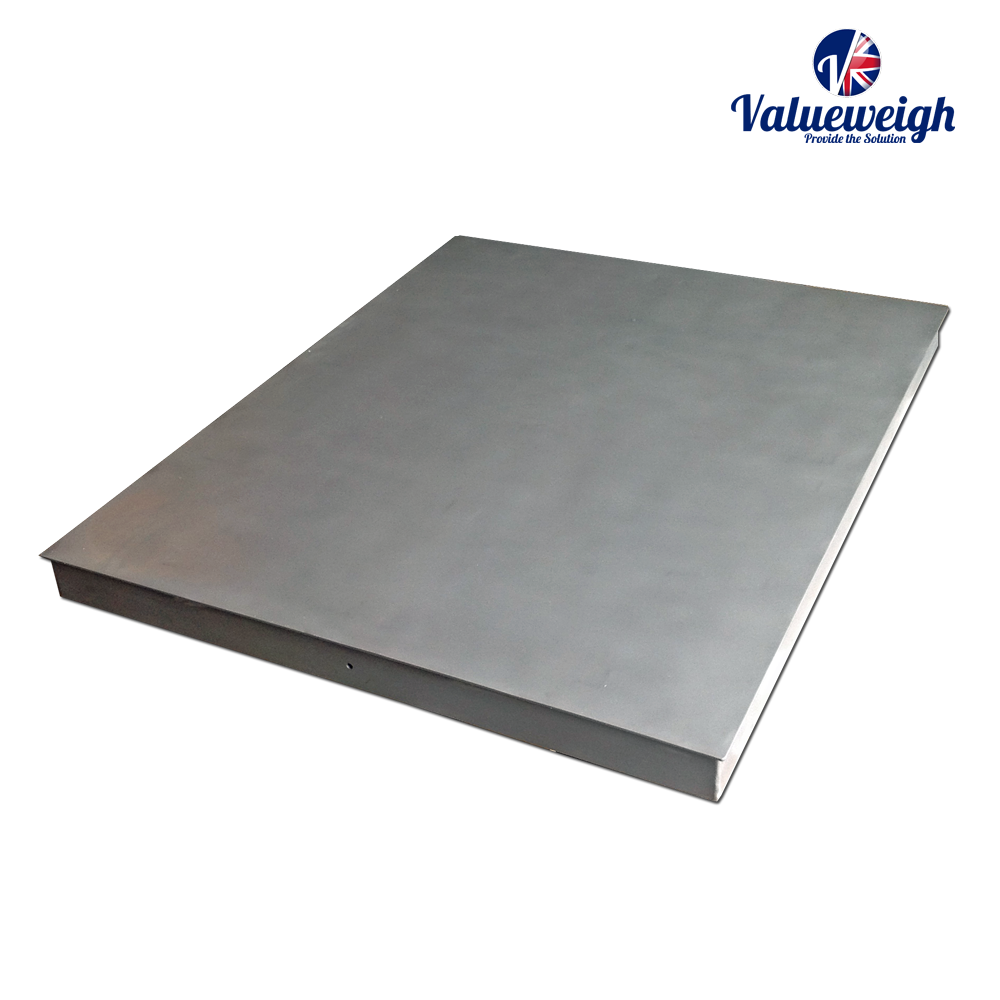

The Valueweigh High Capacity ATEX Platform Scale offers reliable, heavy-duty weighing designed for hazardous environments where explosive gases or dusts are present. Manufactured in the UK, the scale combines a durable mild steel construction with a tough powder-coated finish for long-lasting performance. Equipped with ATEX-certified IP67 stainless steel loadcells and a sealed stainless steel junction box, it ensures safety and accuracy in explosive atmospheres.
Customisation options allow the platform to meet specific operational requirements, including tailored dimensions, higher capacities, ramps, and pit mounting. Its standard capacity is up to 5,000kg, with higher capacities available upon request. The scale also features stainless steel adjustable feet and a robust, industrial-grade design, making it suitable for demanding applications.
Certified to ATEX standards and backed by a two-year warranty, the VWHD Platform Scale is the perfect choice for industries requiring safe, precise, and adaptable weighing solutions in hazardous zones.
Technical Specification
| Weighing Area Dimensions | 1000mm x 1000mm, 1250mm x 1000mm, 1250mm x 1250mm, 1500mm x 1250mm, 1500mm x 1500mm, 1800mm x 1250mm, 1800mm x 1500mm, 2000mm x 2000mm |
|---|---|
| Ramp or Pit Frame | No, 1 Ramp, 2 Ramps, Removable top plate only, Full pit frame and removable top plate, Locating frame for existing pit |
| What type of scale are you building? | Platform & Floor Scale |
| Use | Goods In, Goods Out, Manufacturing |
| IP Rating | IP67 |
| Material | Stainless Steel |
| Mobility | Static |
| Environment | Hazardous, Wet/Hygiene |
| Maximum Capacity | 5000kg |
| Industry | Agriculture, Automotive & Aerospace, Chemical, Food & Drink, Manufacturing, Meat Processing, Pharmaceuticals, Recycling & Waste Reporting |
Literature, Manuals and Documents
Document Name
Action
Videos
Valueweigh ATEX High Capacity Stainless Steel Scale
The Valueweigh High Capacity ATEX Platform Scale is a UK-made, heavy-duty weighing solution designed for hazardous environments. Built with robust mild steel, it features ATEX-certified IP67-rated stainless steel loadcells for safe, accurate performance. Customisable to size and capacity, it handles loads up to 5,000kg, making it ideal for explosive-risk zones.
Price From£3,420.00
