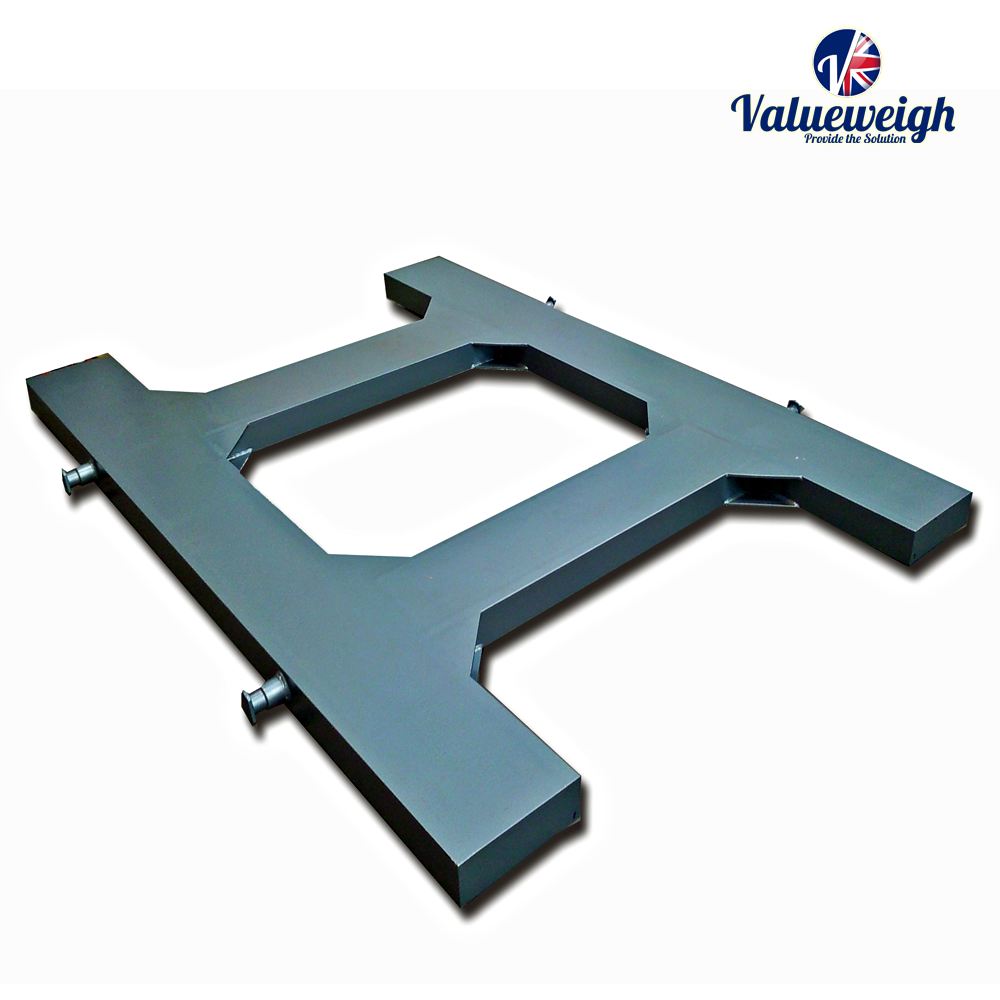

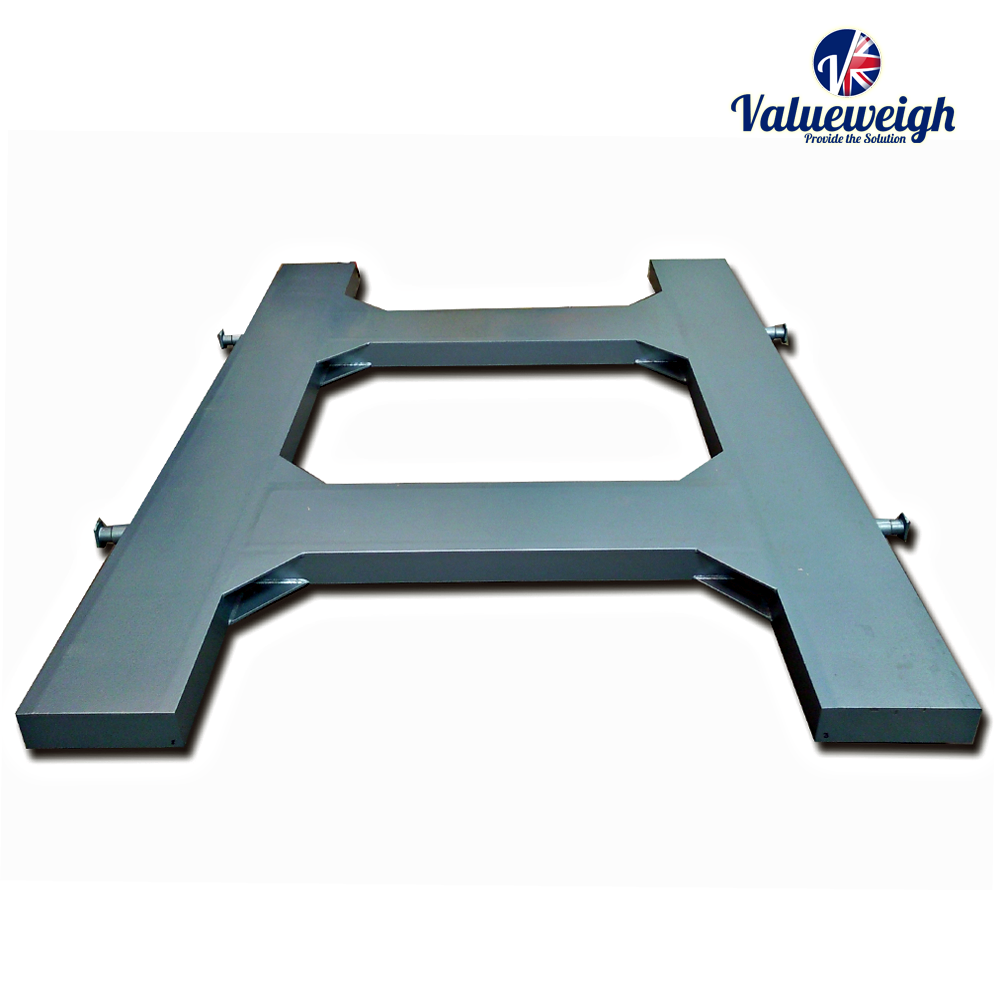

The Valueweigh VWSKIP Skip Weighing Platform Scale is built to endure the rigours of high-capacity skip loading and unloading, providing long-lasting and accurate weighing. Its unique H-frame design, reinforced with an oversized channel frame, ensures maximum strength where needed, while foot spreader plates prevent damage from point loading and help fix the scale securely in position. The scale’s IP67-rated stainless steel loadcells guarantee precise measurements, even in harsh conditions.
Manufactured in the UK, the VWSKIP features lifting lugs for easy portability and secure transportation on skip lorries. Fully customisable to meet specific needs, it offers heavy-duty reliability with a tough powder-coated finish, all backed by a 2-year warranty. With a maximum capacity of 15,000kg, it’s designed to handle the toughest skip weighing applications.
| CAPACITY OPTIONS | 1000kg, 1500kg, 2000kg, 3000kg, 5000kg, 6000kg, 10, 000kg and 15, 000kg (Higher capacity options available on request) |
|---|---|
| DIMENSIONS | 2500mm x 1800mm as standard (others on request) |
| What type of scale are you building? | Platform & Floor Scale |
| PLATFORM HEIGHT | Approx. 130mm to Weighing Area |
| Use | Skip Weighing |
| CONSTRUCTION | 260 x 90 PFC frame laid flat with 120 x 80 box section corner support 5mm smooth top plate |
| IP Rating | IP67 |
| FINISH | Professional tough powder-coated blue finish |
| Mobility | Portable |
| LOADCELLS | 4 off Flintec OIML approved IP67 rated stainless steel SB5 loadcells |
| Environment | Outdoors |
| CABLE | 10m of high quality cable with steel armoured braiding |
| Maximum Capacity | 15000kg |
| FEET | Specially designed mild steel spreader plates |
| Industry | Aggregates & Cement, Recycling & Waste Reporting |
| JUNCTION BOX | Stainless steel sealed junction box and summing board |
The Valueweigh VWSKIP Skip Weighing Platform Scale is ultra-robust, designed specifically for skip weighing applications. Featuring an oversized channel frame, foot spreader plates, lifting lugs, and IP67 stainless steel loadcells, it delivers reliable performance in demanding environments with a maximum capacity of 15,000kg.
£POA
Fill in the form and we will be in touch.
Click here to view our full range of weighing products and solutions, or alternatively Contact us to discuss your requirements
